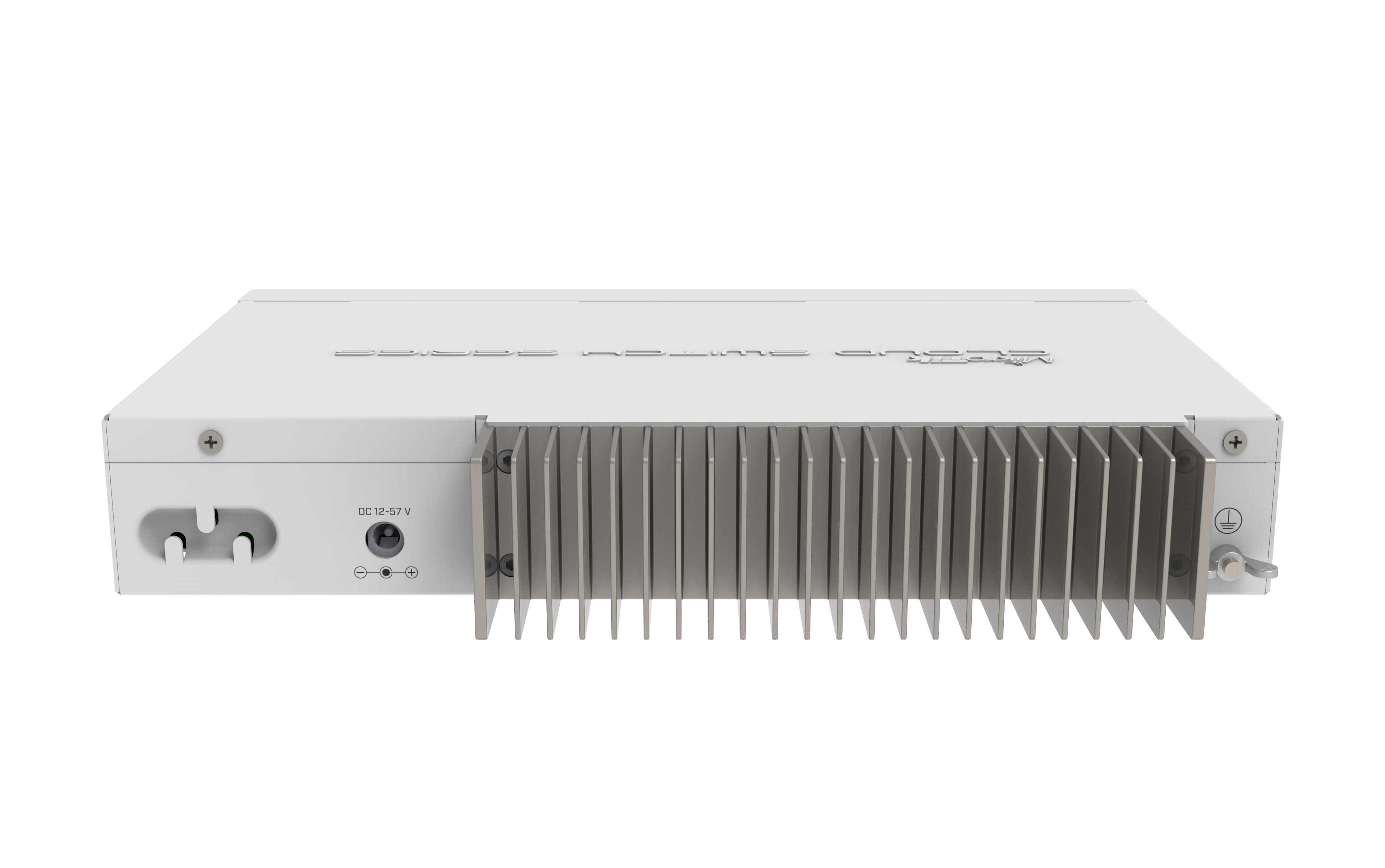

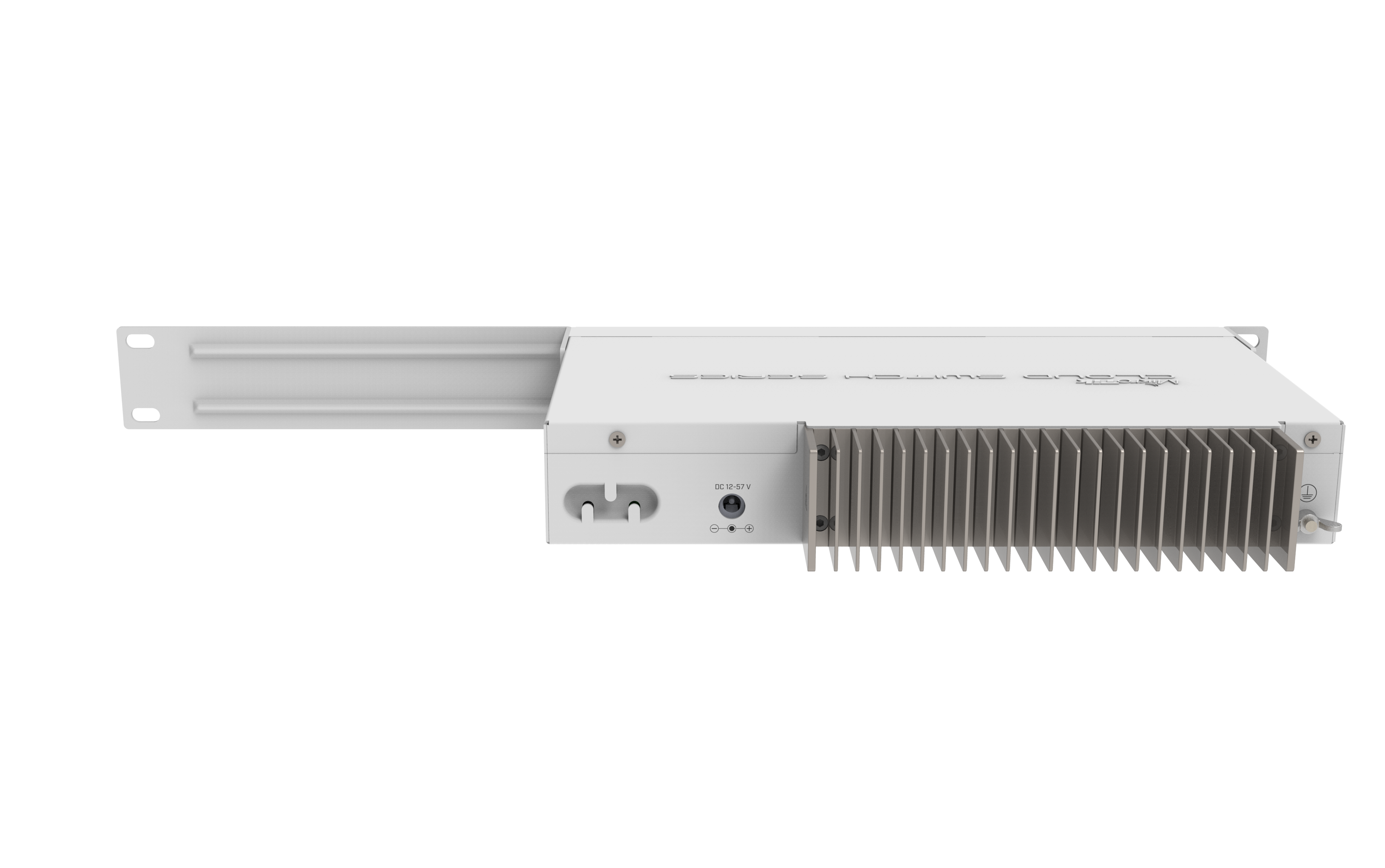

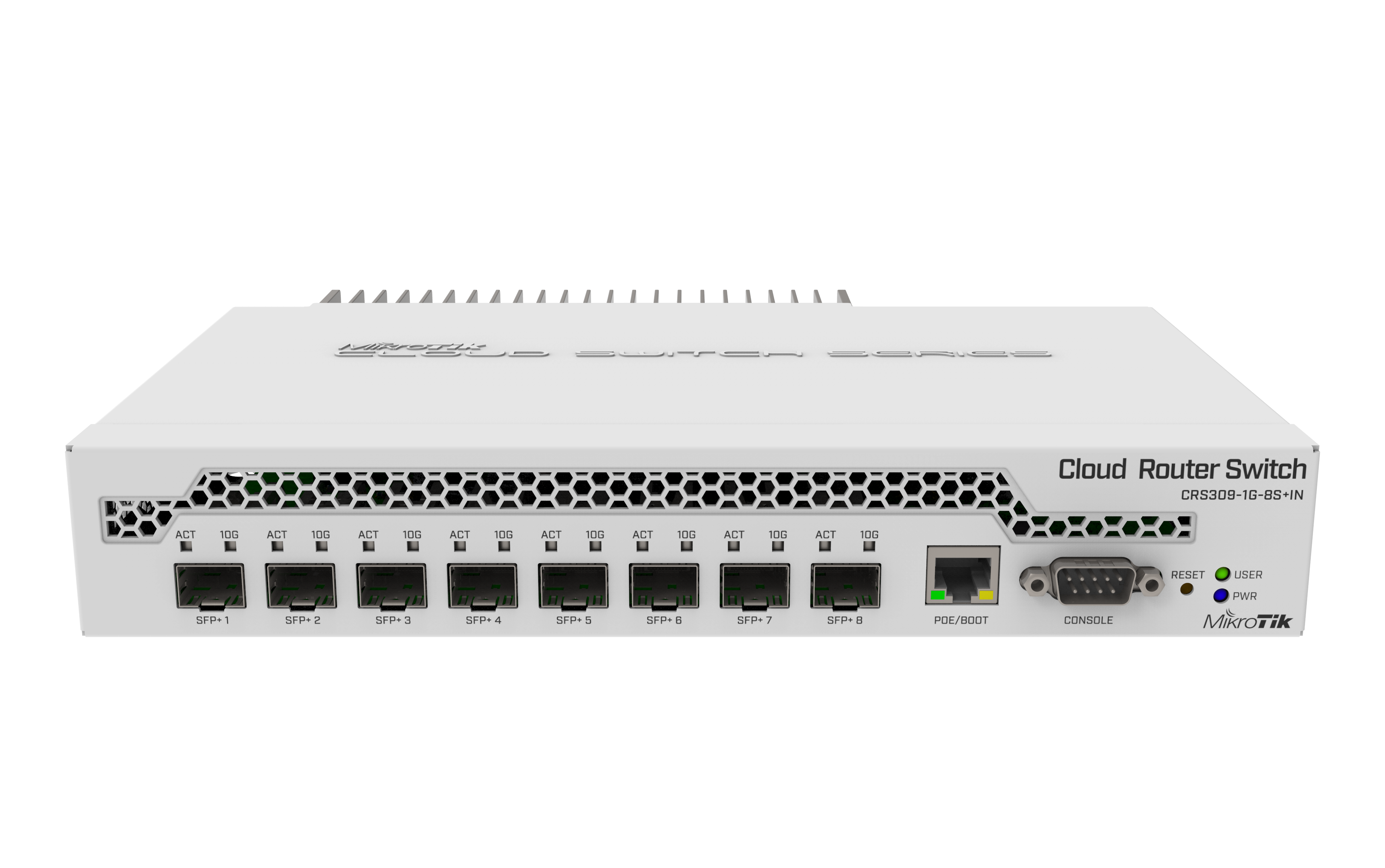

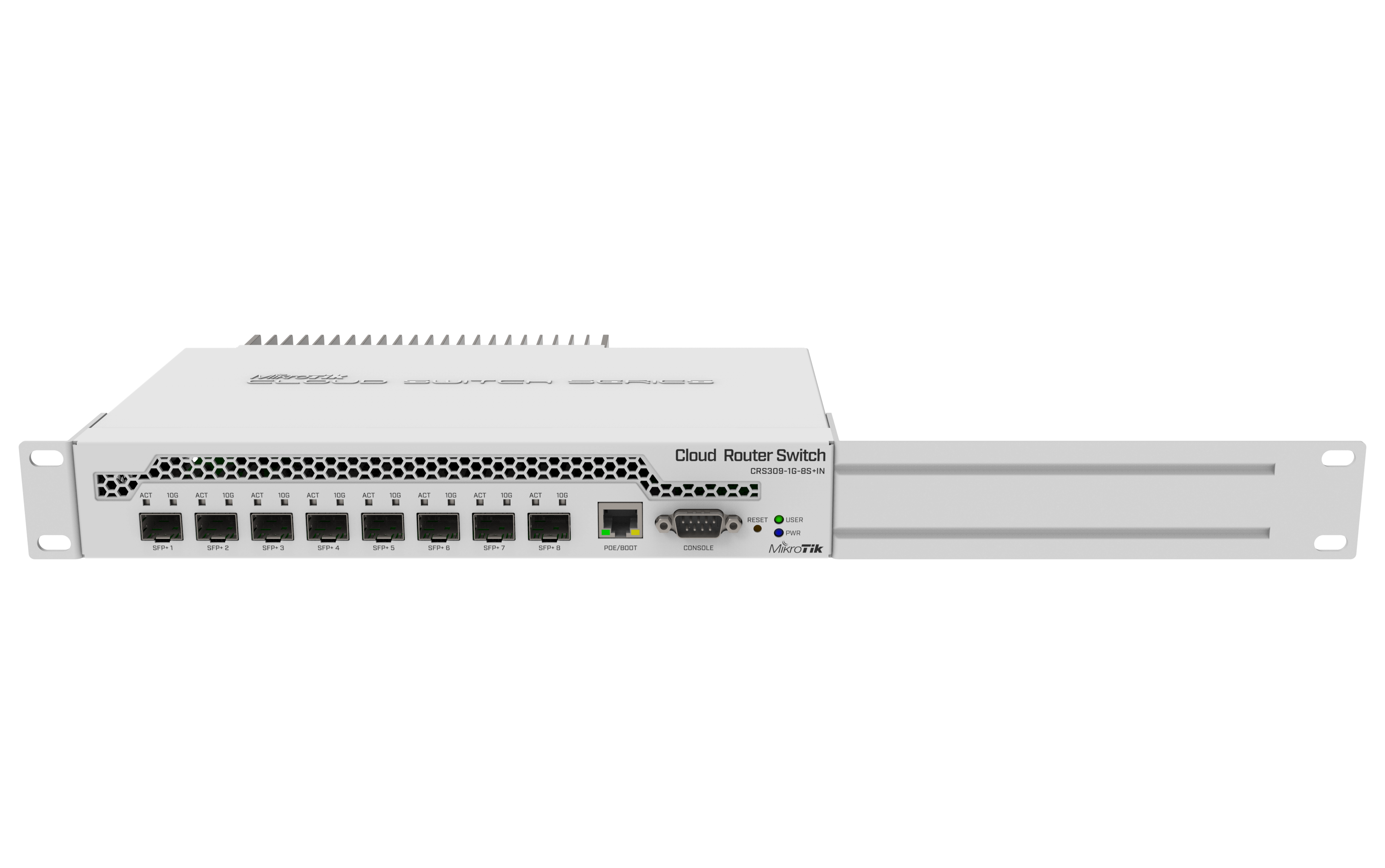

    CRS309-1G-8S+IN Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports

    The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.

    The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).

     Send purchase questions

    Specifications

    Details
    Product code CRS309-1G-8S+IN
    Architecture ARM 32bit
    CPU 98DX8208
    CPU core count 2
    CPU nominal frequency 800 MHz
    Switch chip model 98DX8208
    Dimensions 272 x 191 x 44 mm
    RouterOS license 5
    Operating System RouterOS / SwitchOS
    Size of RAM 512 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $269.00

    Powering

    Details
    Number of DC inputs 2 (PoE-IN, DC jack)
    DC jack input Voltage 12-57 V
    Max power consumption 23 W
    Max power consumption without attachments 17 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 18-57 V

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Fiber

    Details
    SFP+ ports 8

    Peripherals

    Details
    Serial console port RS232

    Other

    Details
    CPU temperature monitor Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP IP20

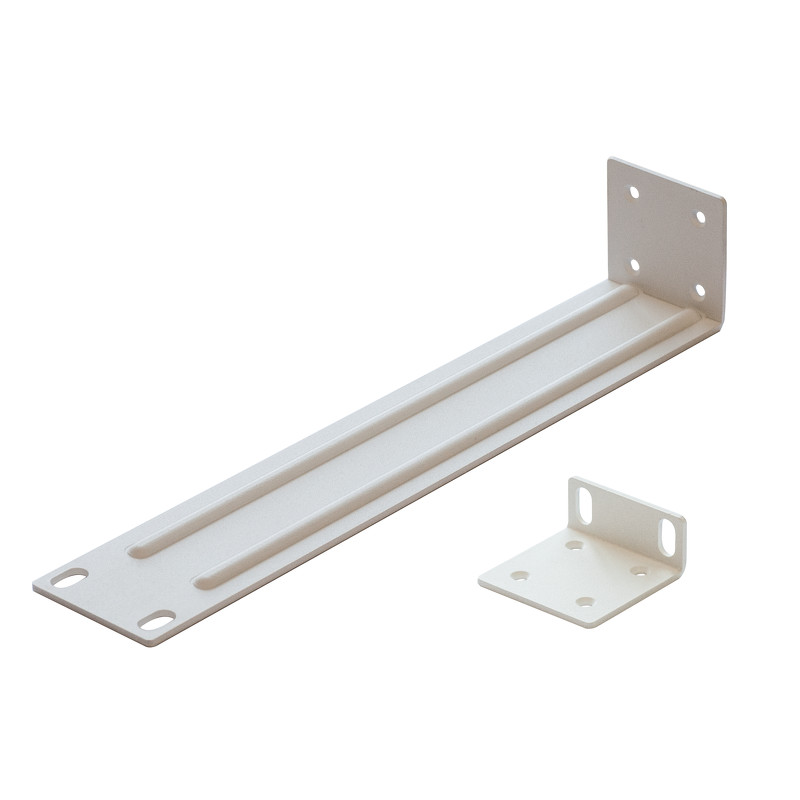

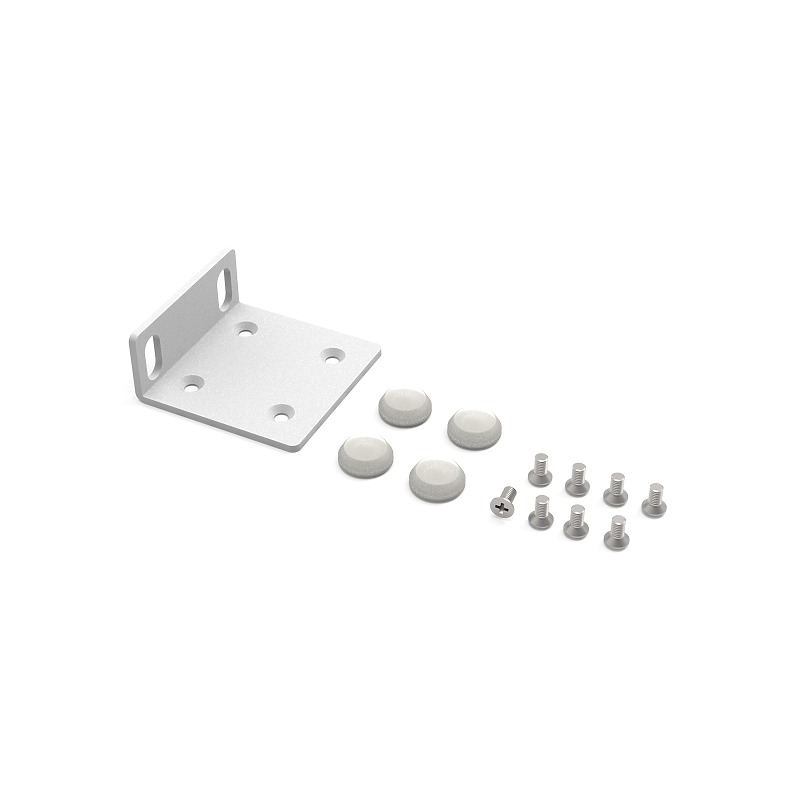

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload

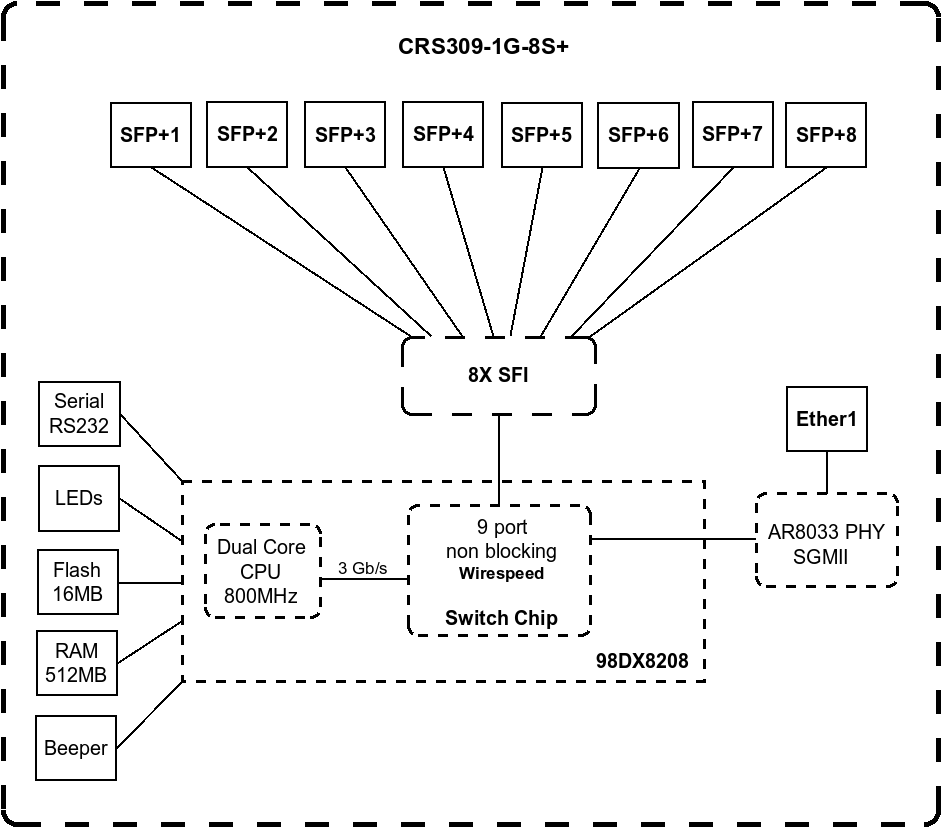

    Block DiagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    SwOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #
    #
    #

    Switching results

    CRS309-1G-8S+IN
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Switching Non blocking Layer 2 throughput 6,583.2 79,946.7 19,032.0 77,954.9 120,535.7 61,714.3
    Switching Non blocking Layer 2 capacity 6,583.2 159,893.4 19,032.0 155,909.8 120,535.7 123,428.6
    Switching Non blocking Layer 1 throughput 6,583.2 81,000.0 19,032.0 81,000.0 120,535.7 81,000.0
    Switching Non blocking Layer 1 capacity 6,583.2 162,000.0 19,032.0 162,000.0 120,535.7 162,000.0

    Ethernet test results

    CRS309-1G-8S+IN98DX8208 all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)217,52641.3231,1946.6243,6124.7
    Bridging25 bridge filter rules117,41425.7117,4480.9145,274.3
    Routingnone (fast path)207,62521.1217,6891.3229,5117.5
    Routing25 simple queues121,11470.6122,7502.6145,274.3
    Routing25 ip filter rules83,61015.283,1340.488,945.5
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
