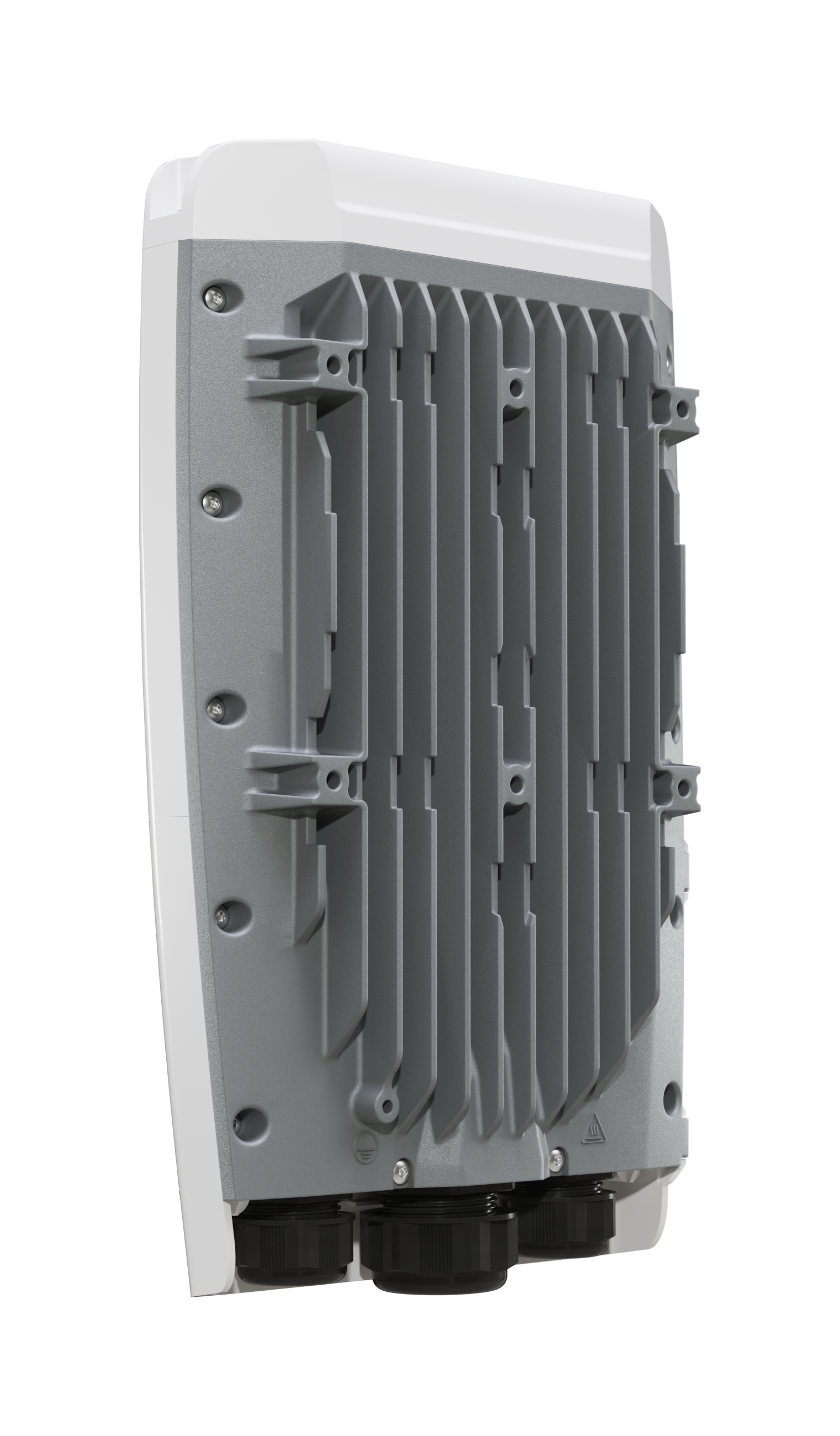

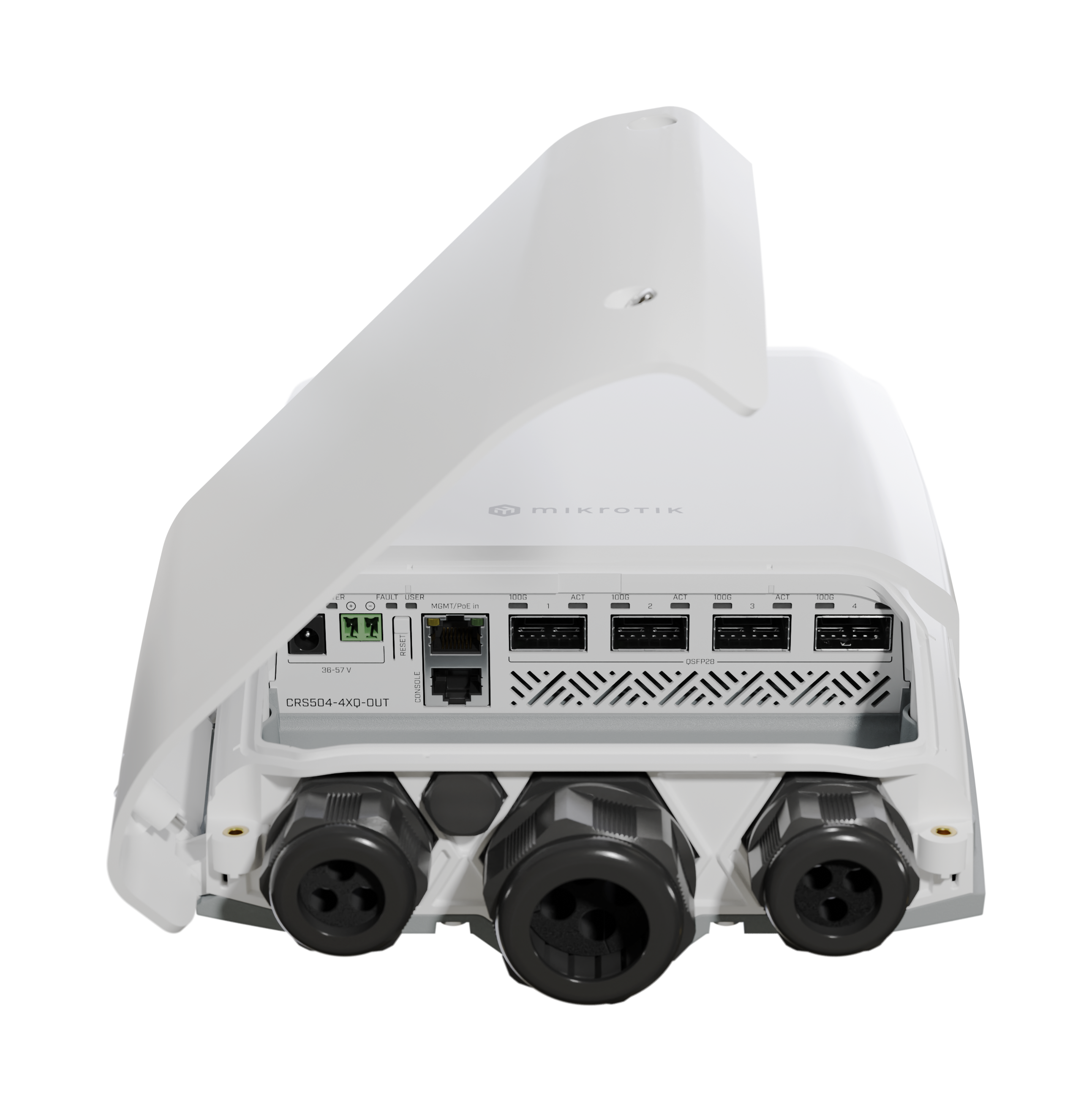

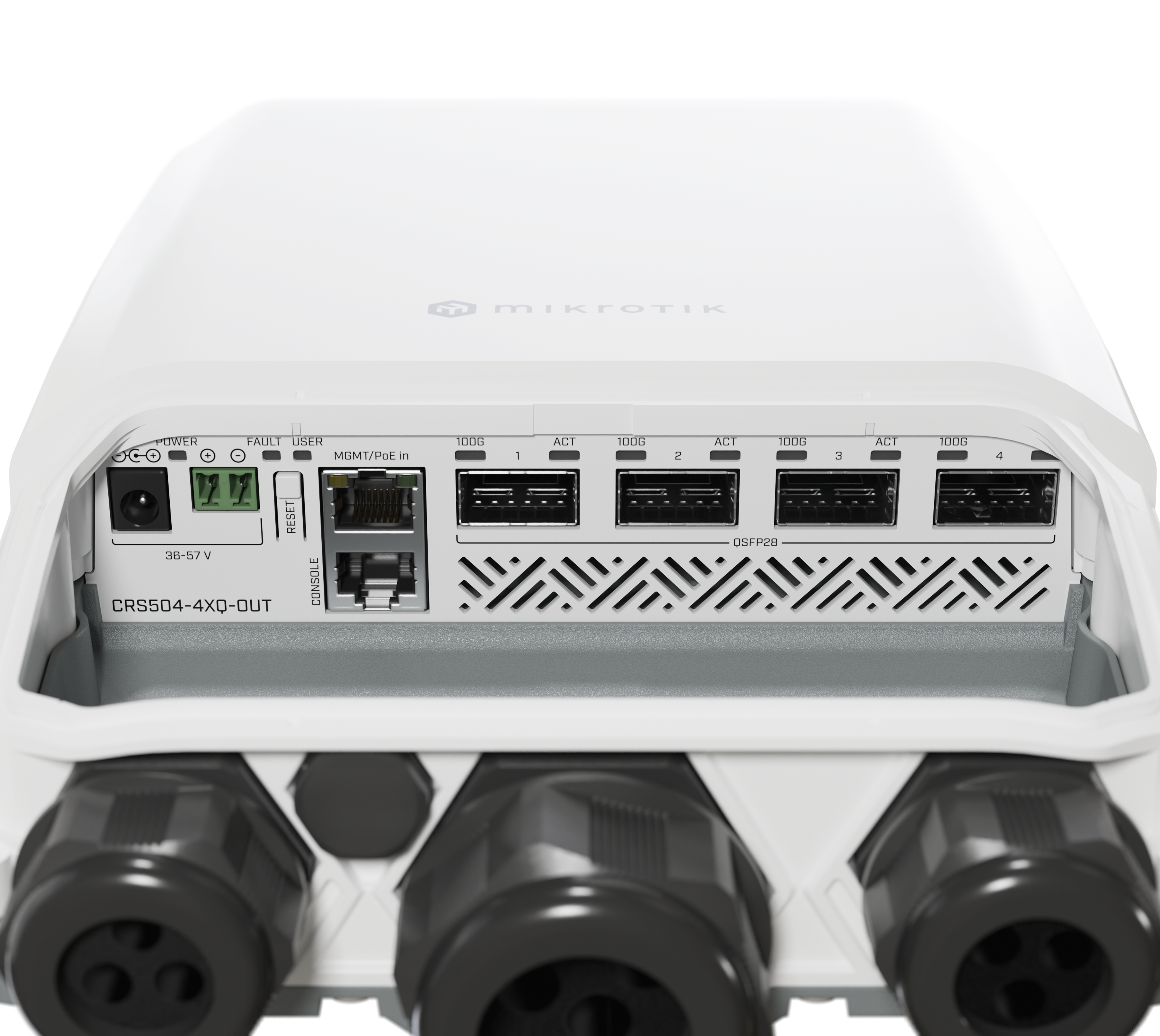

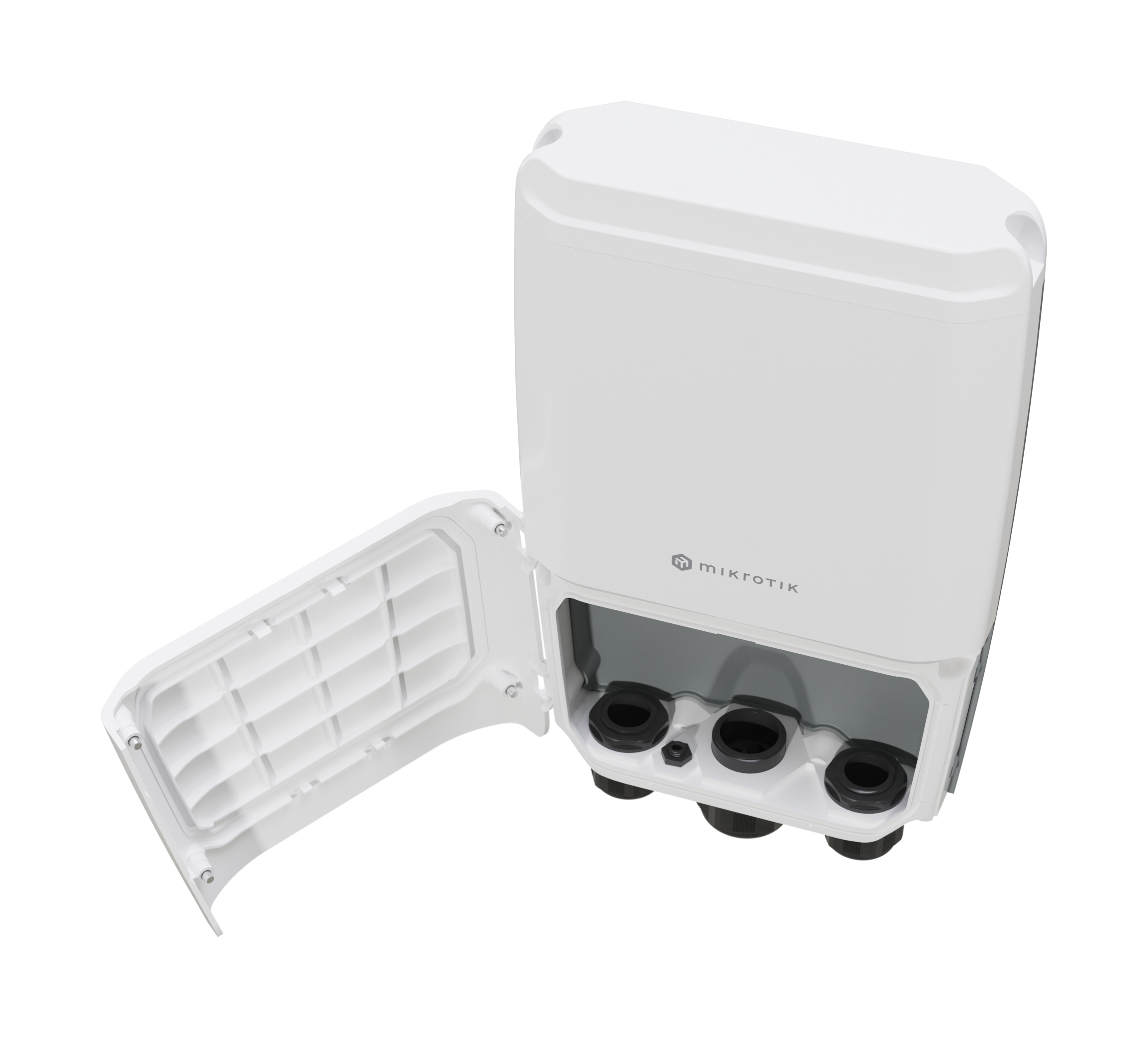

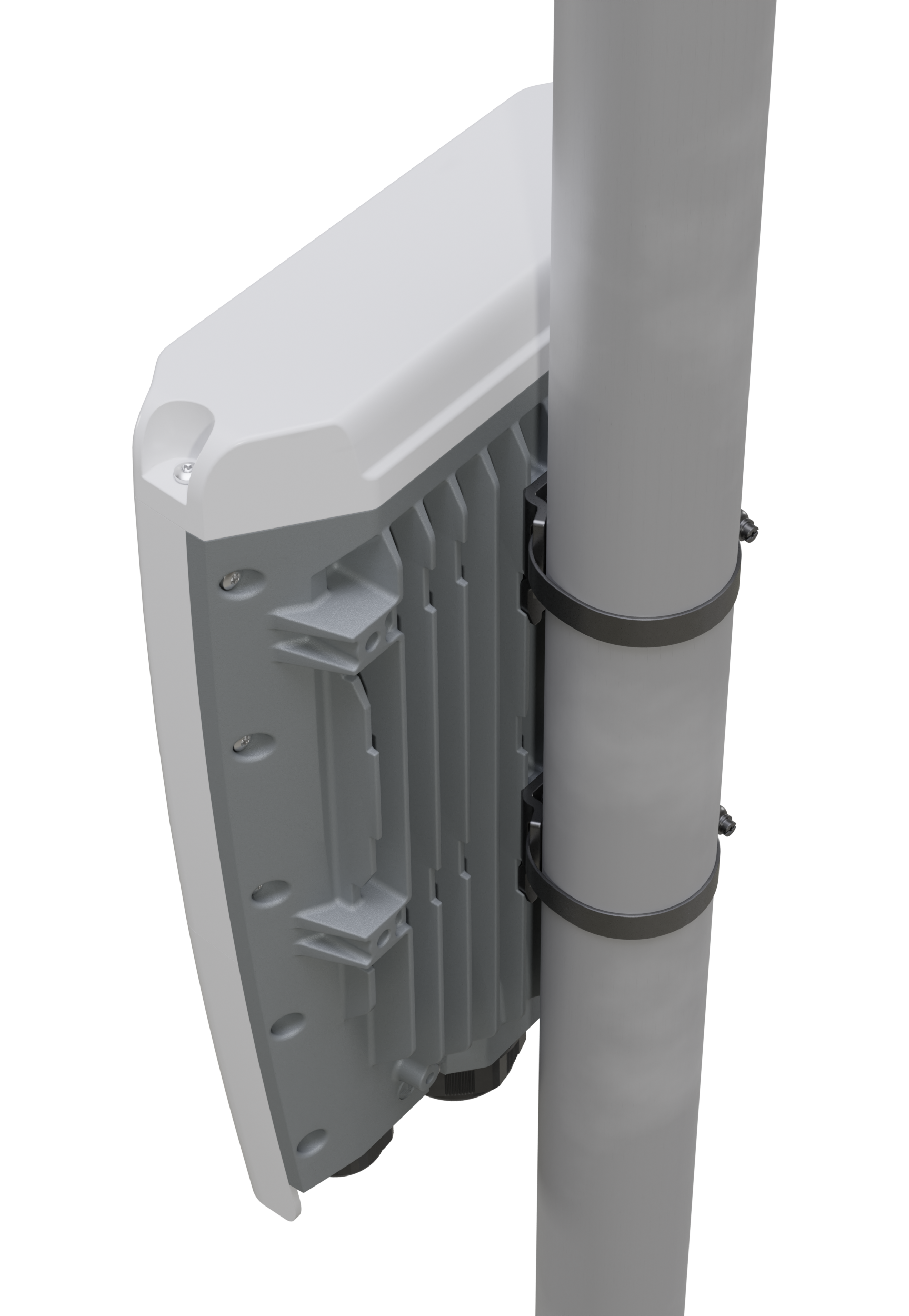

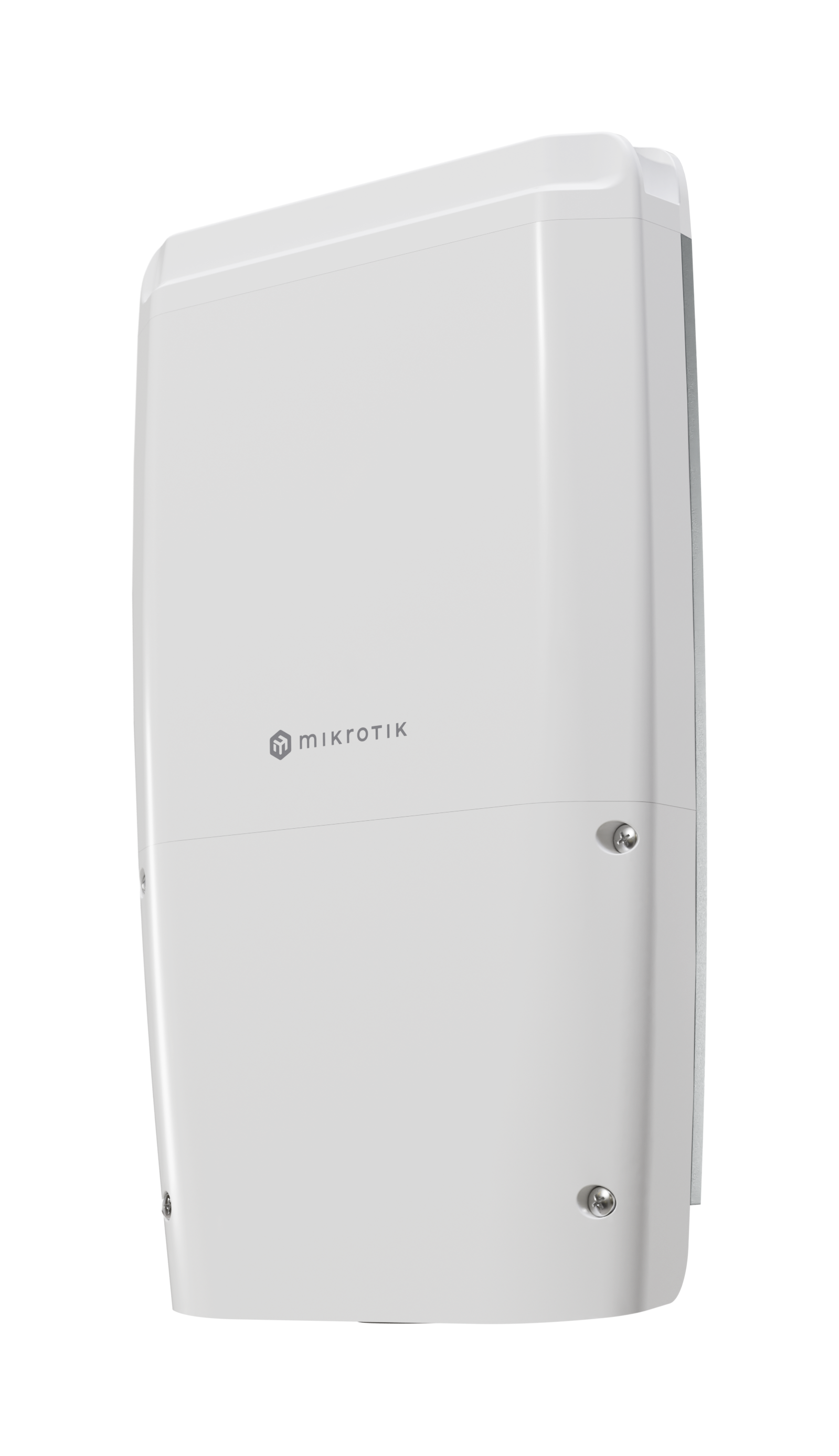

    CRS504-4XQ-OUT Affordable, compact, energy-efficient 100 Gbps networking anytime, ANYWHERE! IP66 weatherproof enclosure, 4x 100 Gigabit ports, multiple powering options.

    Should high-quality 100 Gigabit connectivity be limited to indoors only? Definitely not! That’s why we created the CRS504-4XQ-OUT: a versatile, cost-effective, ultra-fast weatherproof switch for all your outdoor needs.

    At the core of this masterpiece, we have an incredible Marvell Prestera switch chip. And there are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices. Here’s where the speedy switch chip really shines: each port is connected to four 25 Gigabit lines. That means you’re getting up to 16 high-speed fiber interfaces from a single outdoor switch! You can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4x25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. And all this versatility comes in a sturdy, weatherproof IP66-rated enclosure. This rating proves it’s strong enough to handle powerful water jets from any direction!

    When it comes to outdoor event planning, you can never be too prepared. So having multiple powering options is a must! And CRS504-4XQ-OUT has got you covered: there’s a standard DC jack, a 2-pin terminal, and 802.3bt PoE-in. We’ve also kept the good old management and console ports – to help you deal with any unexpected situations.

    Performance-wise, CRS504-4XQ-OUT is a real workhorse that can handle VLANs, ACL, MLAG, Jumbo frames, and so much more – even some L3 hardware offloading! The mighty Marvell Prestera switch chip dominates most tasks without blowing the power consumption up – only up to 25W (without attachments).

    Stop waiting for the perfect weather – invest in the perfect tools!

     Send purchase questions

    Specifications

    Details
    Product code CRS504-4XQ-OUT
    Architecture MIPSBE
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    Switch chip model 98DX4310
    RouterOS license 5
    Operating System RouterOS v7
    Size of RAM 128 MB
    Storage size 32 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $899.00

    Powering

    Details
    Number of DC inputs 3 (PoE-IN, 2-pin terminal, DC jack)
    DC jack input Voltage 36-57 V
    2-pin terminal input Voltage 36-57 V
    Max power consumption 44 W
    Max power consumption without attachments 25 W
    Cooling type Passive
    PoE in 802.3 bt
    PoE in input Voltage 43-57 V

    Ethernet

    Details
    10/100 Ethernet ports 1

    Fiber

    Details
    Number of 100G QSFP28 ports 4

    Peripherals

    Details
    Serial console port RJ45

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP 66

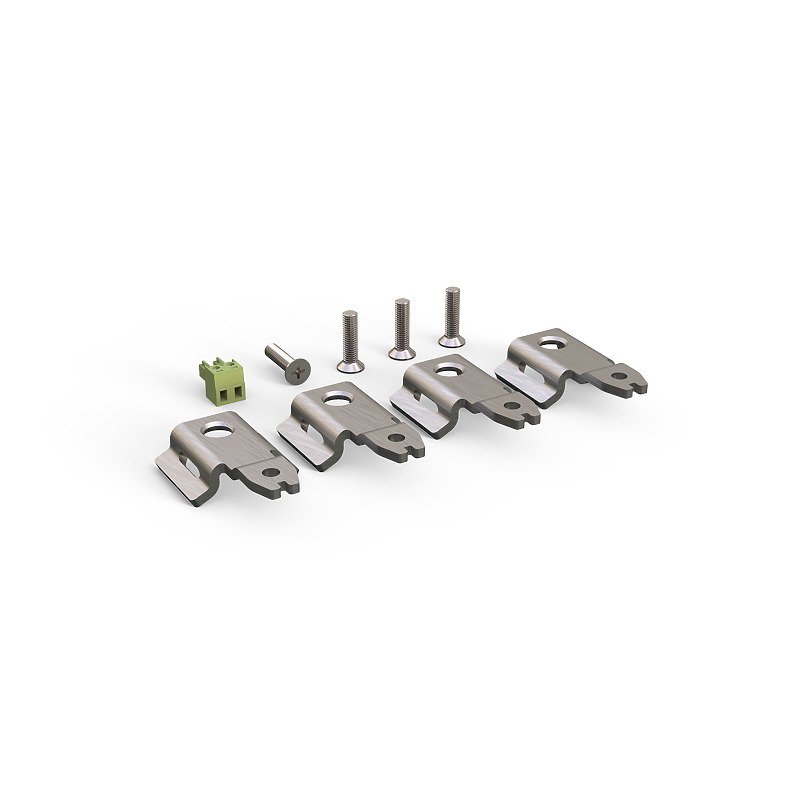

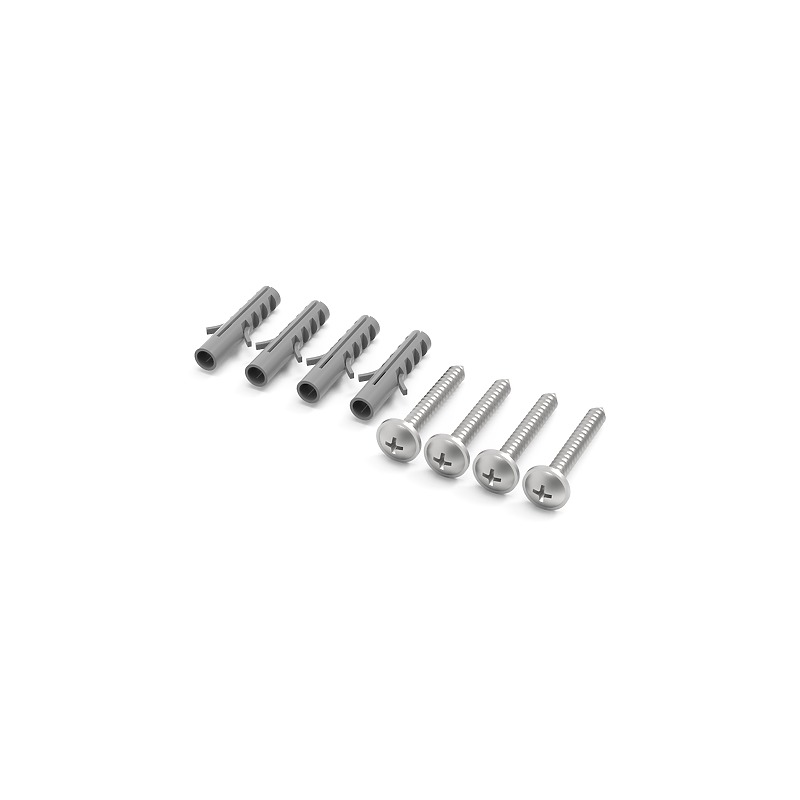

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload

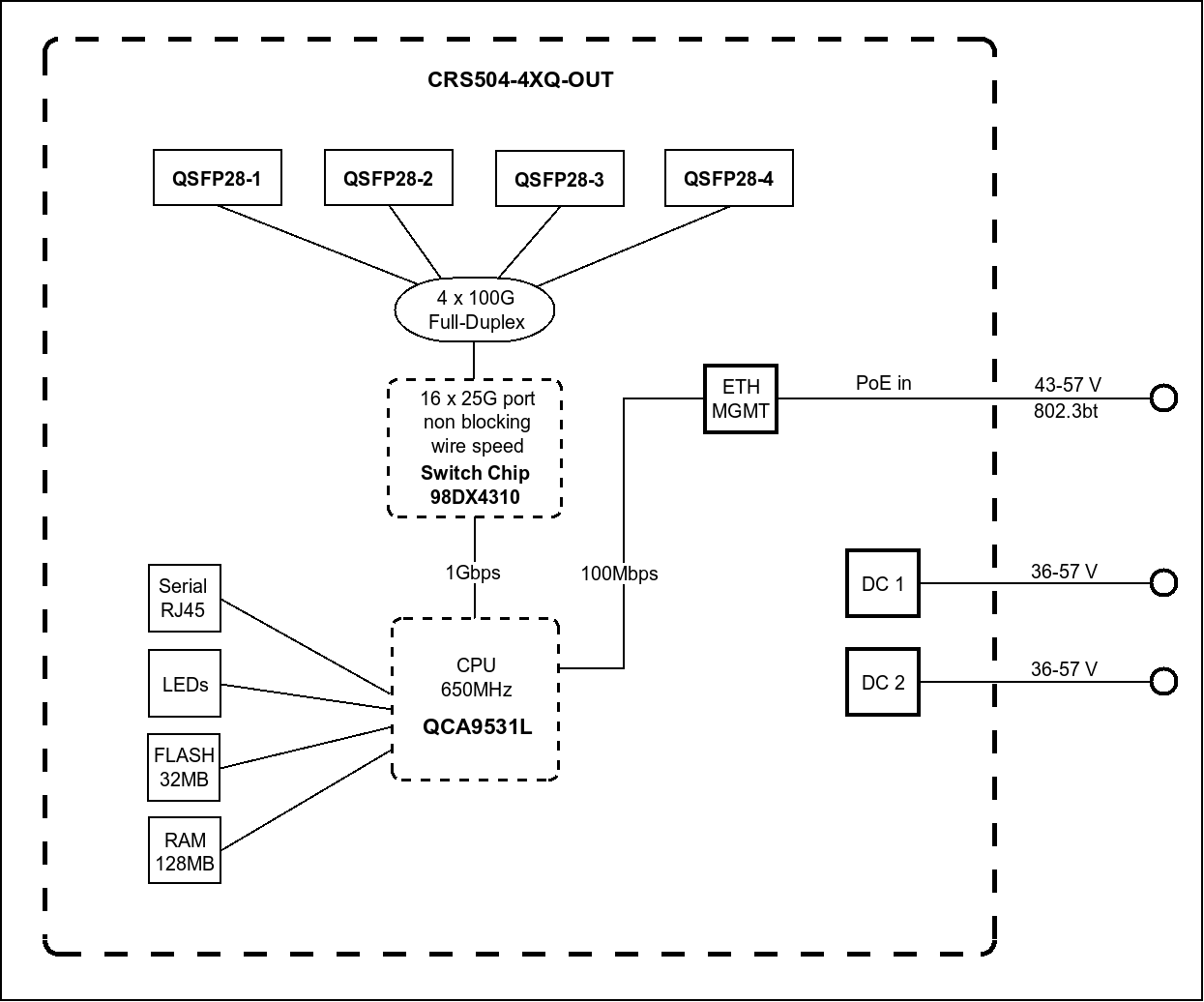

    Block DiagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Switching results

    CRS504-4XQ-OUT
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    SwitchingNon blocking Layer 2 throughput32517.9394897.194008.5385058.6595386.9304838.1
    SwitchingNon blocking Layer 2 capacity32517.9789794.394008.5770117.3595386.9609676.2
    SwitchingNon blocking Layer 1 throughput32517.9400100.094008.5400100.0595386.9400100.0
    SwitchingNon blocking Layer 1 capacity 32517.9800200.094008.5800200.0595386.9800200.0
    Routingnone (L3HW)32509.7394798.193984.9384962.1299891.2163140.8
    Routing25 ip filter rules (Fasttrack L3HW)32509.7394798.193984.8384961.9288803.4157109.0

    Ethernet test results

    CRS504-4XQ-OUTQCA9531 all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)37,4454.282,8339.1162,583.2
    Bridging25 bridge filter rules33,8410.547,8195.875,638.7
    Routingnone (fast path)37,2451.873,3300.2144,974.2
    Routing25 simple queues36,4442.052,4214.654,427.9
    Routing25 ip filter rules33,8410.541,4169.641,721.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
