    hAP ax³ Our top-of-the-line AX home access point. With all the processing power and speed your household might ever need. Gen 6 wireless, 2.5 Gigabit Ethernet, PoE, WPA3, and more!

    Ultimate power for your whole home

    hAP ax³ is our most powerful AX device with the best wireless network coverage so far. It features a modern quad-core ARM CPU running at 1.8 GHz and enough memory (1GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels won’t stop your family from comfortable browsing, streaming, gaming, and so on. There’s enough processing power for everyone. And we’ve added a speedy USB 3 port for all your storage purposes or an additional LTE modem.

    AX wireless – as strong as an ox

    Depending on your overall setup, our AX product family offers up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! Potent external antennas allow reaching gain up to 5.5 dBi, so you can forget about Wi-Fi Boosters and other tricks. Smooth and fast connectivity for your whole apartment – that’s just how hAP ax³ works. Home network speeds are getting serious. There are 4x Gigabit Ethernet ports and an ultra-fast 2.5 Gigabit port.

    Safer in many ways

    hAP ax³ can ease your mind on multiple levels simultaneously. European-based production, our famous Nordic work ethic, and cooperation with the EU lawmakers ensure full compliance with all the necessary safety policies. Multiple power options (DC Jack & PoE-in) result in fewer worries about potential downtime. The latest RouterOS v7 updates and the addition of WPA3 advanced encryption support bring unprecedented software security.

    To sum things up - hAP ax³ is among the fastest, safest, and most powerful choices in the home access point world. Wired or wireless. And it comes with the most advanced networking software on the market – RouterOS. Unlike many other vendors, we don’t limit what you can do. There are no paywalls or confusing subscriptions. All our devices share the same limitless operating system. Imagination is the only limitation.

    Some might ask – why do we even need higher wireless speeds? Well, countless use cases have been previously impossible or difficult to pull off. For example, working with large media files over the wireless network – without the need to download and upload everything. Do you really have the time to wait? Grab a hAP ax³ and save more time for the essential things in life.

     Send purchase questions

    Specifications

    Details
    Product code C53UiG+5HPaxD2HPaxD
    Architecture ARM 64bit
    CPU IPQ-6010
    CPU core count 4
    CPU nominal frequency auto (864 - 1800) MHz
    Switch chip model IPQ-6010
    RouterOS license 6
    Operating System RouterOS v7
    Size of RAM 1 GB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    IPsec hardware acceleration Yes
    Suggested price $139.00

    Wireless capabilities

    Details
    Wireless 2.4 GHz Max data rate 574 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n/ax
    Antenna gain dBi for 2.4 GHz 3.3
    Wireless 2.4 GHz chip model QCN-5022
    Wireless 2.4 GHz generation Wi-Fi 6
    Wireless 5 GHz Max data rate 1200 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac/ax
    Antenna gain dBi for 5 GHz 5.5
    Wireless 5 GHz chip model QCN-5052
    Wireless 5 GHz generation Wi-Fi 6
    WiFi speed AX1800

    Ethernet

    Details
    10/100/1000 Ethernet ports 4
    Number of 1G Ethernet ports with PoE-out 1
    Number of 2.5G Ethernet ports 1

    Peripherals

    Details
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB 3.0 type A
    Max USB current (A) 1.5

    Powering

    Details
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 12-28 V
    Max power consumption 38 W
    Max power consumption without attachments 15 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 18-28 V

    PoE-out

    Details
    PoE-out ports Ether 1
    PoE out Passive PoE
    Max out per port output (input 18-30 V) 0.625 A
    Max total out (A) 0.625 A
    Total output current 0.625
    Total output power 15

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP 20

    Other

    Details
    CPU temperature monitor Yes
    Mode button Yes

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s27-100
    11MBit/s27-94
    6MBit/s29-96
    54MBit/s27-80
    MCS029-96
    MCS726-75
    MCS924-70
    MCS1122-67
    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s28-96
    54MBit/s26-80
    MCS028-96
    MCS725-75
    MCS923-70
    MCS1120-67

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current release
    FCC Grant of Certification (2.4GHz)Open
    FCC Grant of Certification (5GHz)Open

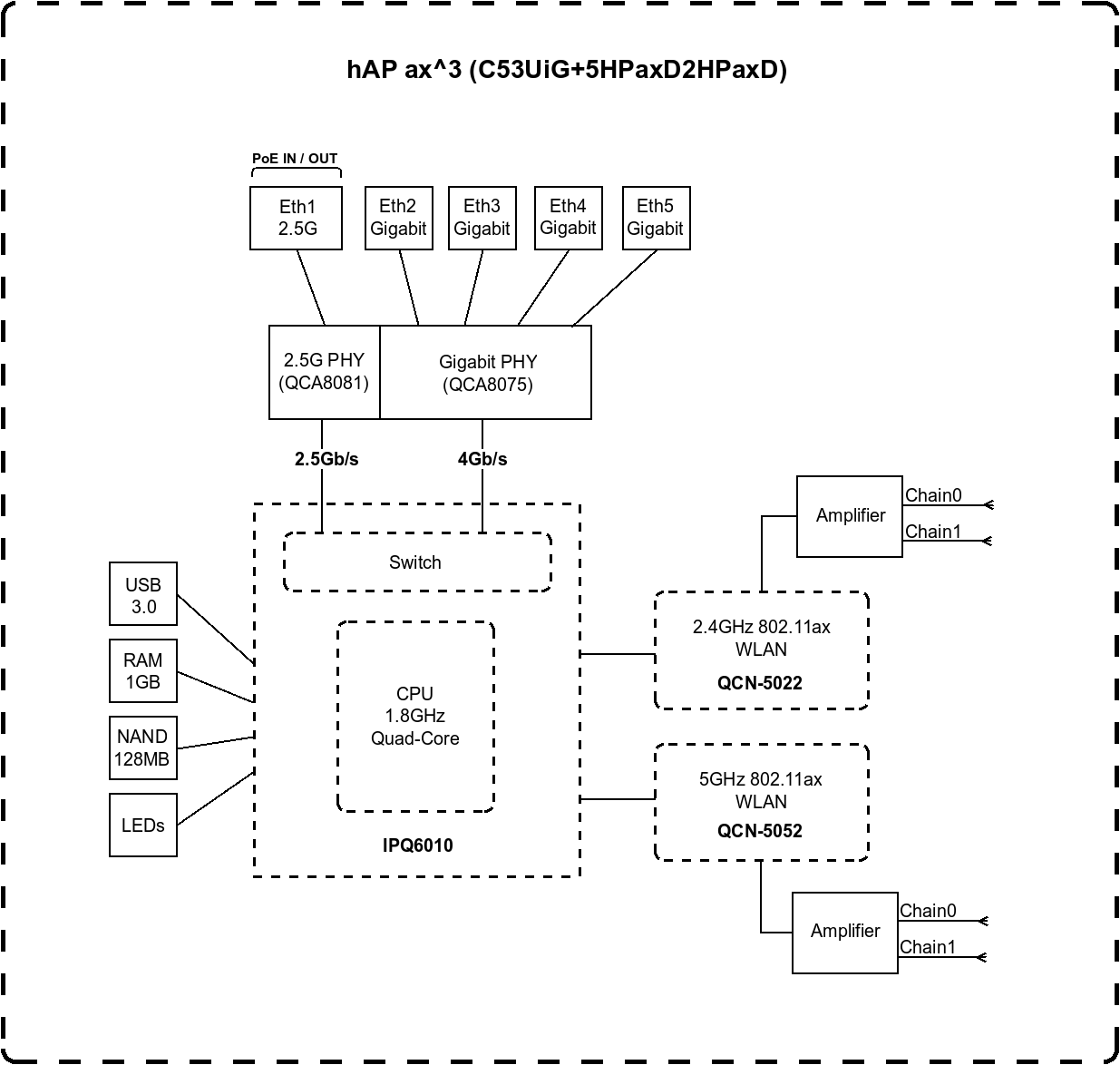

    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #
    #

    Ethernet test results

    C53UiG+5HPaxD2HPaxDIPQ-6010 All port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)219.22662593.52430.91509.2821
    Bridging25 bridge filter rules218.12649.1460.31885.3468.5254.9
    Routingnone (fast path)218.92657.8596.62443.61228.3668.2
    Routing25 simple queues218.52653.5463.41898468.5254.9
    Routing25 ip filter rules215.32614.4279.61145.2281.8153.3
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    C53UiG+5HPaxD2HPaxDIPQ-6010 IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA178.4878.191.9376.493.647.9
    256 tunnelsAES-128-CBC + SHA150.1561.155.5227.358.630
    256 tunnelsAES-128-CBC + SHA2565056055.4226.958.630
    256 tunnelsAES-256-CBC + SHA149.4553.354.8224.558.630
    256 tunnelsAES-256-CBC + SHA25649.4553.355225.358.630
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
