    hEX S 5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, IPsec hardware encryption support and The Dude server package

    hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.

    It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage. The port #5 can power other passive PoE capable devices with the same voltage as applied to the unit

    IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.

     Send purchase questions

    Specifications

    Details
    Product code RB760iGS
    Architecture MMIPS
    CPU MT7621A
    CPU core count 2
    CPU nominal frequency 880 MHz
    CPU Threads count 4
    Switch chip model MT7621A
    Dimensions 113 x 89 x 28 mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 256 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    IPsec hardware acceleration Yes
    Suggested price $79.00

    Powering

    Details
    Number of DC inputs 2 (PoE-IN, DC jack)
    DC jack input Voltage 12-57 V
    Max power consumption 24 W
    Max power consumption without attachments 6 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 12-57 V

    PoE-out

    Details
    PoE-out ports Ether5
    PoE out Passive PoE up to 57V
    Max out per port output (input 18-30 V) 500 mA
    Max out per port output (input 30-57 V) 500 mA
    Max total out (A) 500 mA

    Ethernet

    Details
    10/100/1000 Ethernet ports 5

    Fiber

    Details
    SFP ports 1

    Peripherals

    Details
    Memory card type microSD
    Memory Cards 1
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Mode button Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP IP20

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    Mounting dimensionsOpen

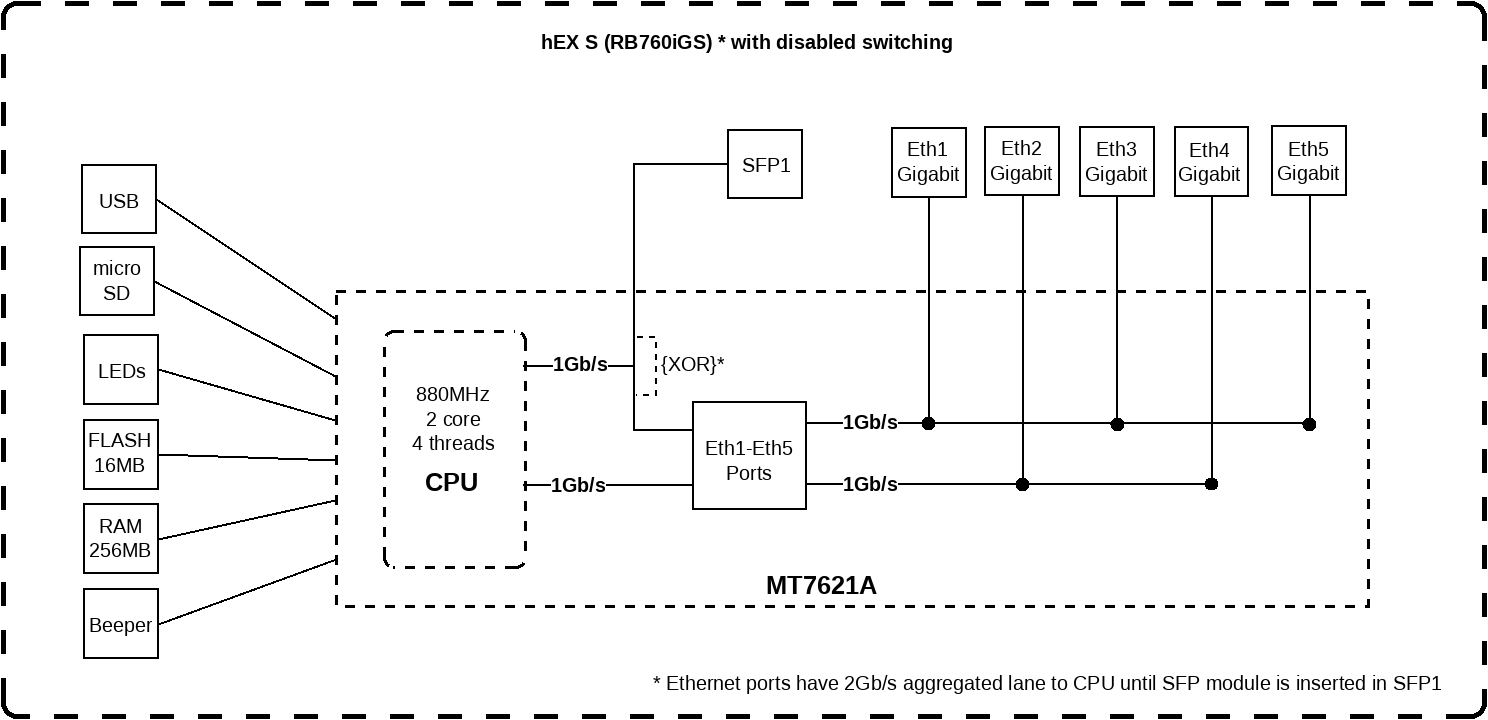

    Block Diagram with disabled switchingOpen

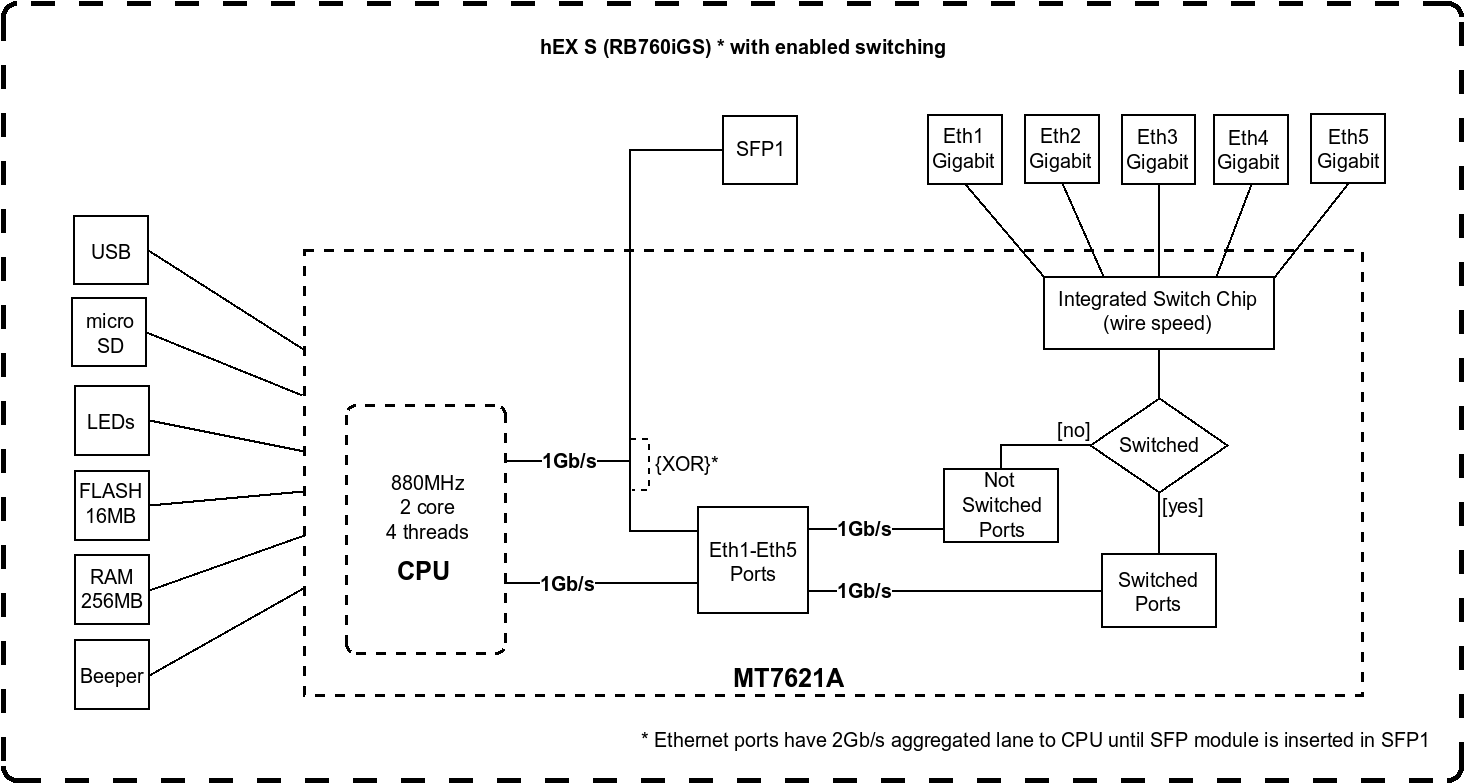

    Block Diagram with enabled switchingOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

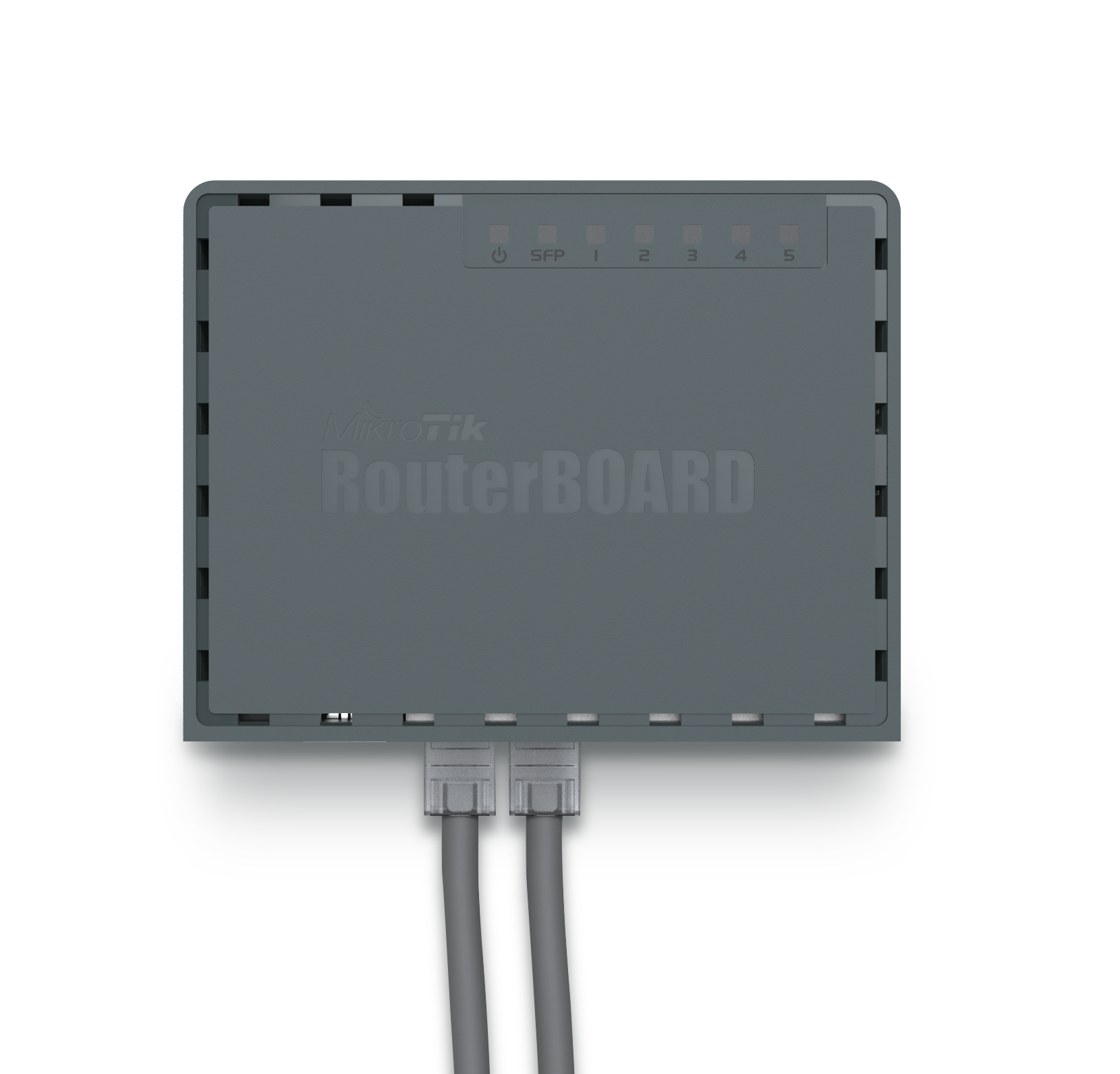

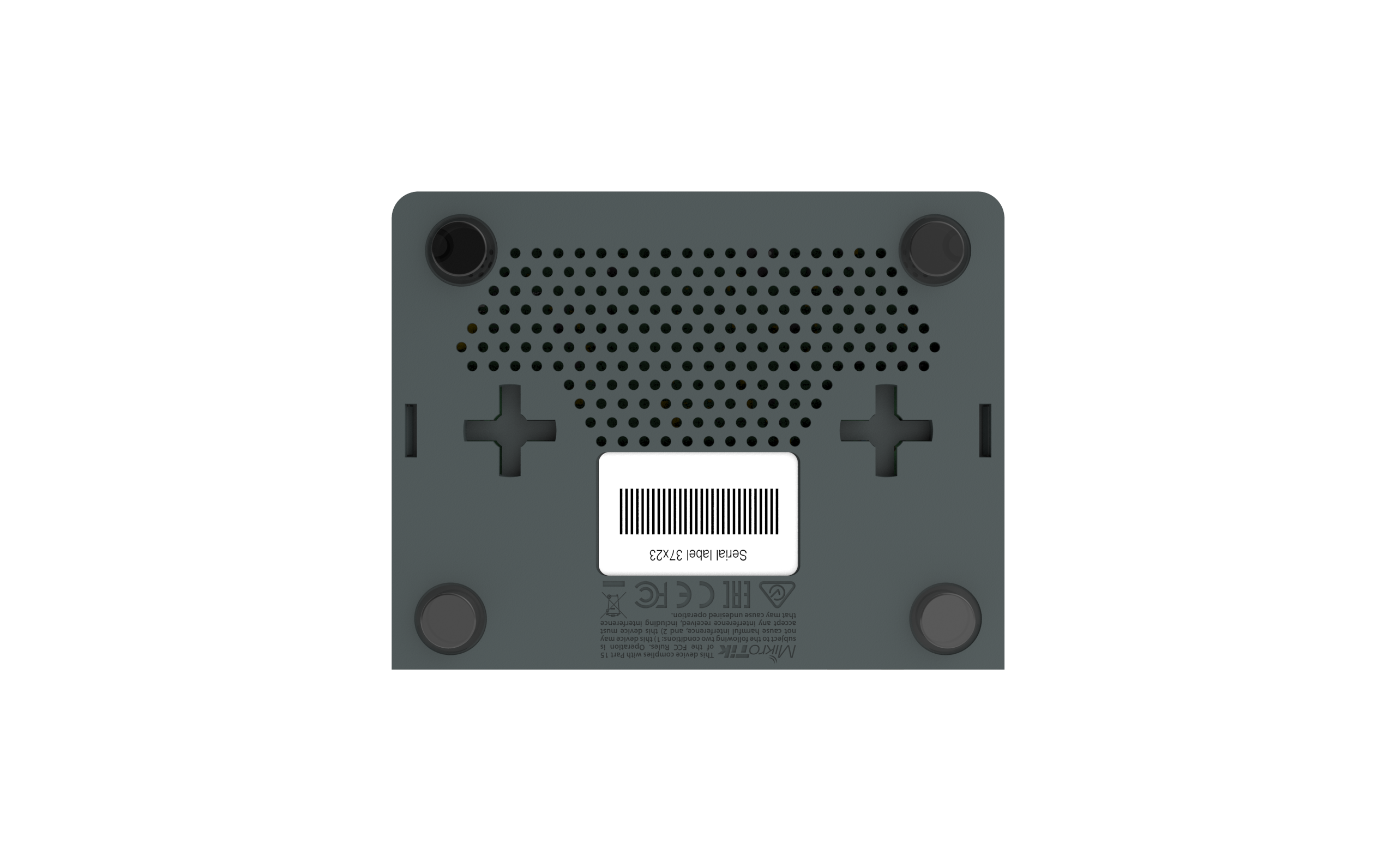

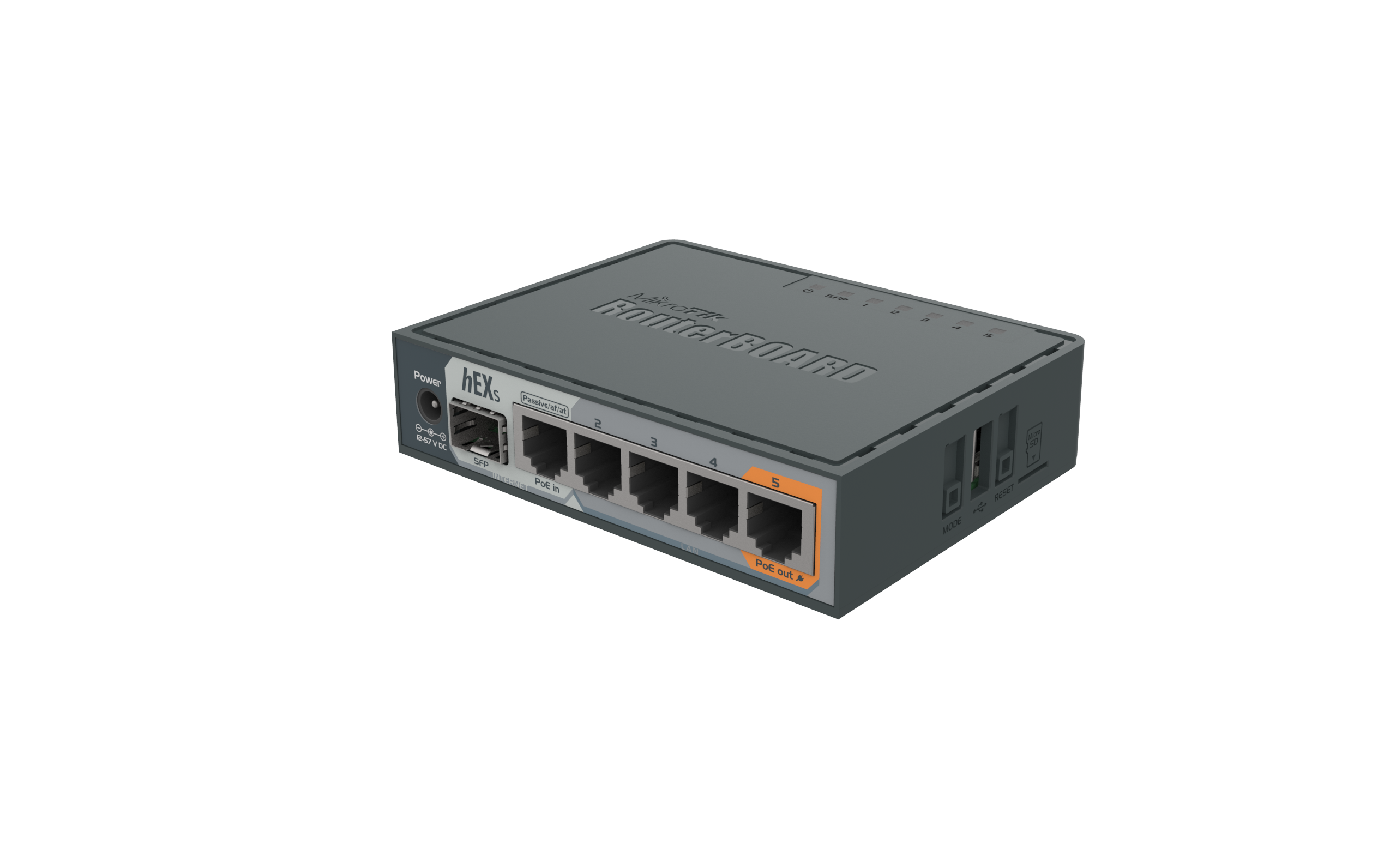

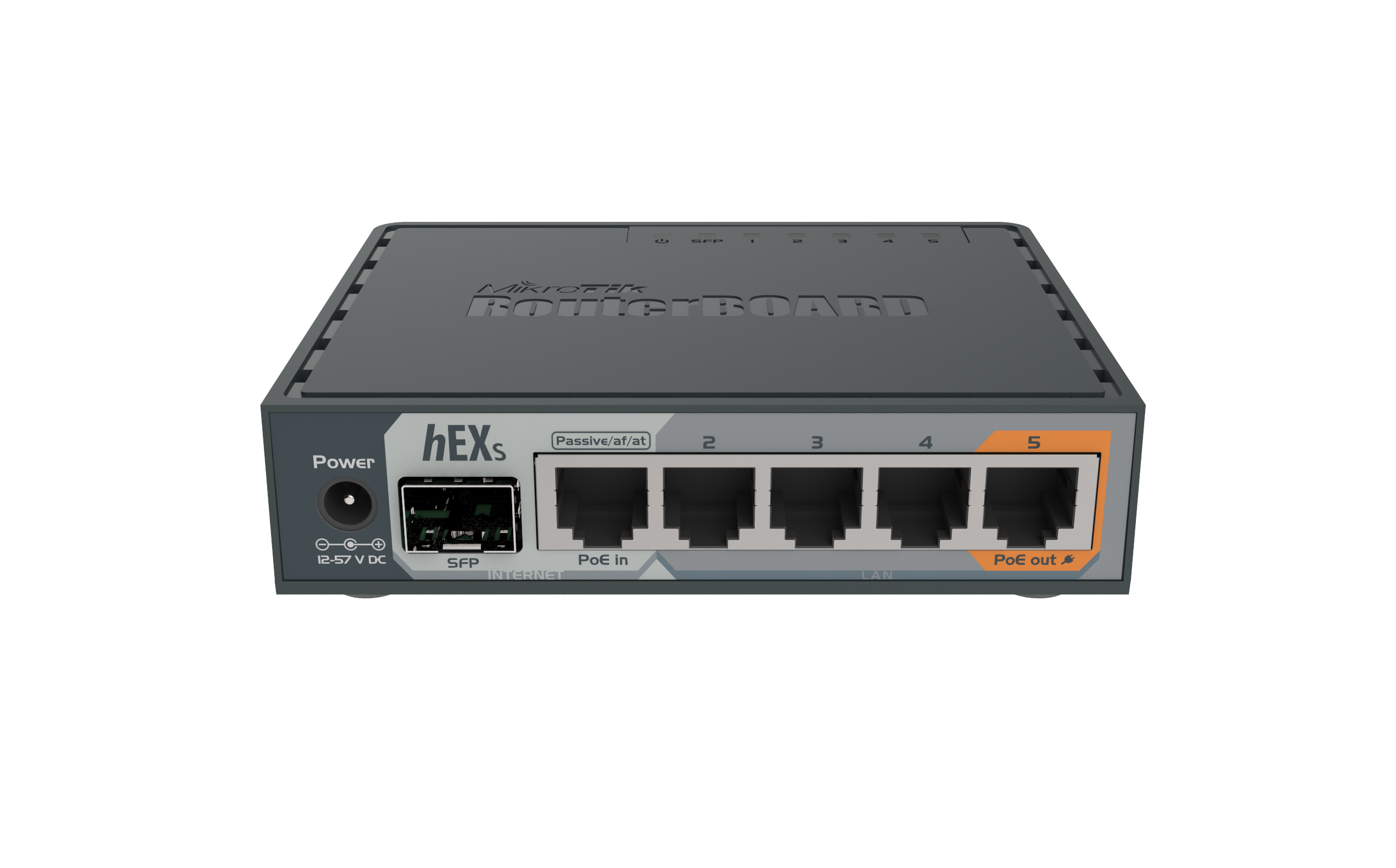

    High resolution images

    Ethernet test results

    RB760iGSMT7621A (880Mhz) 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)162.41,972.2443.71,817.41039.1532.0
    Bridging25 bridge filter rules162.41,972.2168.1688.5174.389.2
    Routingnone (fast path)162.41,972.2444.41,820.31035.0529.9
    Routing25 simple queues162.41,972.2179.6735.6171.487.8
    Routing25 ip filter rules92.91,128.294.1385.493.848.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    RB760iGSMT7621A IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA141.9469.342.3173.341.521.2
    256 tunnelsAES-128-CBC + SHA141.9469.343.717942.721.9
    256 tunnelsAES-128-CBC + SHA25642.2472.644.4181.942.721.9
    256 tunnelsAES-256-CBC + SHA132358.440163.840.520.7
    256 tunnelsAES-256-CBC + SHA25632.1359.539.7162.640.520.7
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
