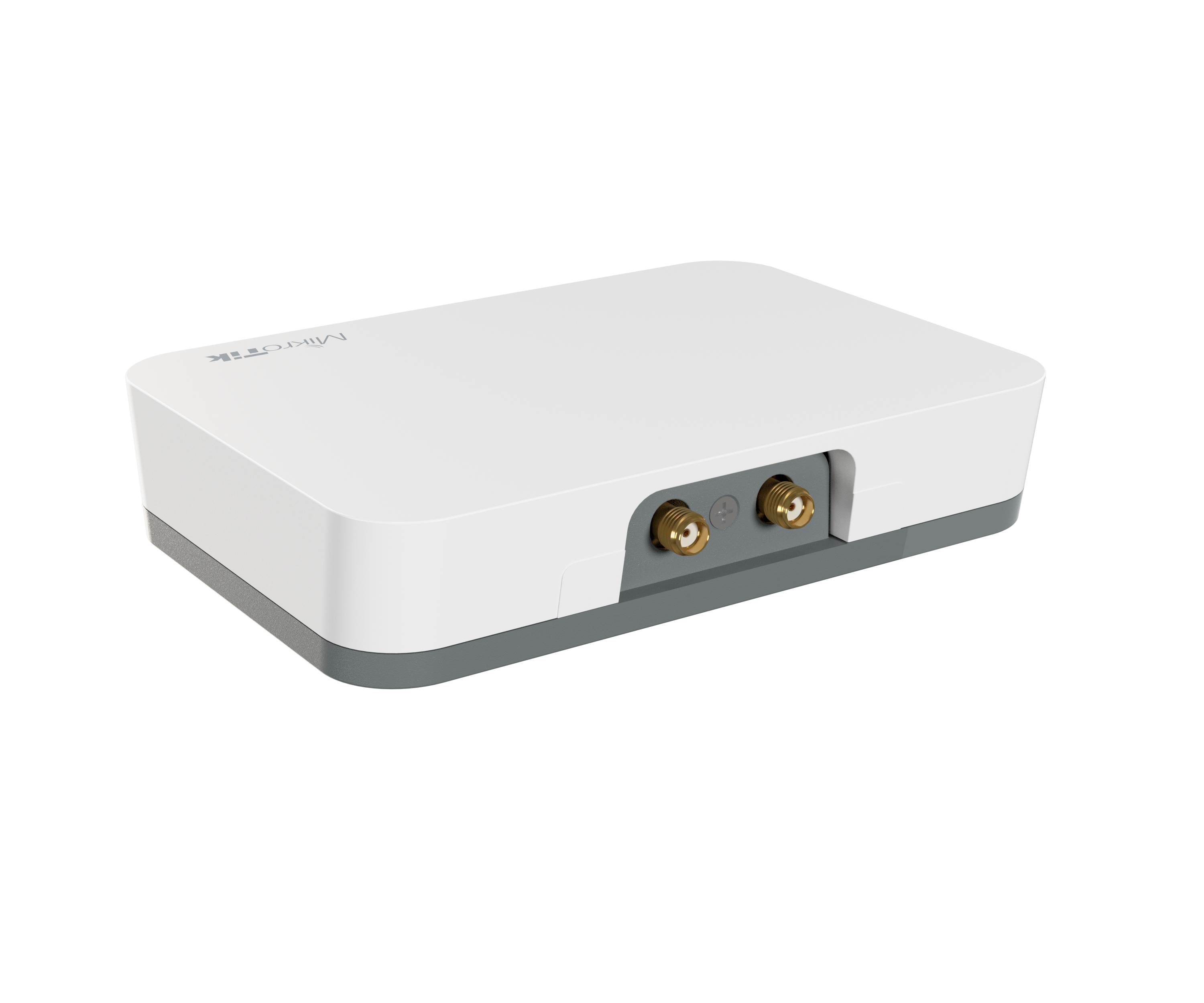

    KNOT IoT Gateway for the most versatile and cost-effective setups

    The newest addition to the MikroTik IoT product family – KNOT – is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe.

    KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT.

    You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors, such as electricity meters and relays.

    It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and liquid sensors with only a few megabytes per day!

    KNOT features so many protocol support and connectivity options:

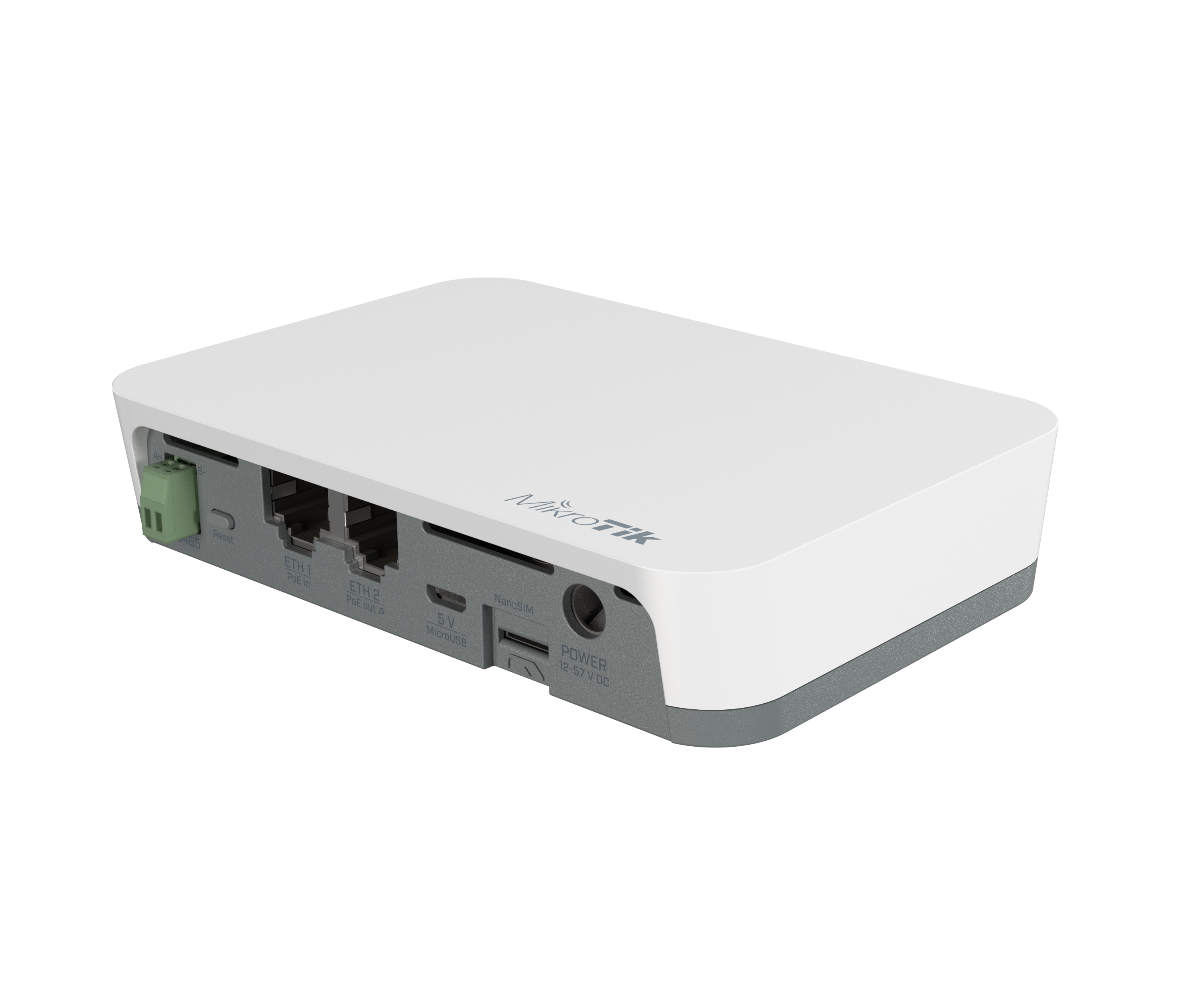

    2.4 GHz wireless, Bluetooth, GPS, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost!

    With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format.

    It has powerful filters for forwarding only relevant packets and ignoring others.

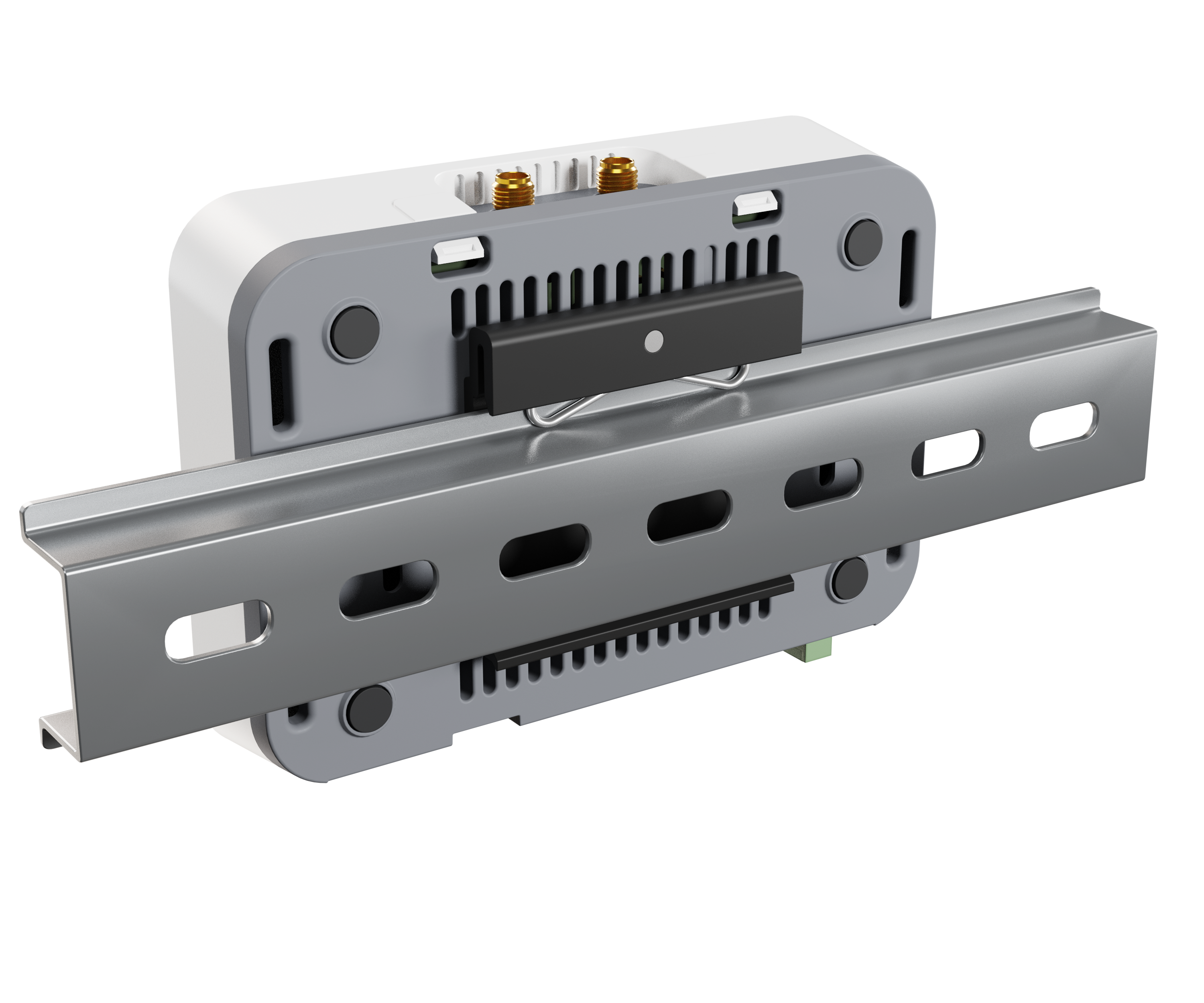

    KNOT is a great tool for most outdoor cabinet IoT applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing, and so on.

    Bring flexible low-cost connectivity to the most remote or tricky areas with the MikroTik KNOT!


     Send purchase questions

    Specifications

    Details
    Product code RB924i-2nD-BT5&BG77
    Architecture MIPSBE
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    Switch chip model QCA9531
    Dimensions 122 x 87 x 26 mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $99.00

    Powering

    Details
    MicroUSB input Voltage 5 V
    Number of DC inputs 3 (MicroUSB, DC jack, PoE-IN)
    DC jack input Voltage 12-57 V
    Max power consumption 18 W
    Max power consumption without attachments 5 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 18-57 V

    PoE-out

    Details
    PoE-out ports Ether2
    PoE out Passive PoE up to 57V
    Total output power 12

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 1.5
    Wireless 2.4 GHz chip model QCA9531
    Wireless 2.4 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports 2

    Peripherals

    Details
    Number of SIM slots 1 Modem (Nano SIM)
    Serial console port RS485
    Number of USB ports 1
    USB slot type microUSB type AB
    Max USB current (A) 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Bluetooth version 5.2
    Bluetooth RF connector type uUFL

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP20

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s22-96
    11MBit/s22-89
    6MBit/s20-93
    54MBit/s18-74
    MCS020-93
    MCS716-71

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    AWS Getting Started GuideOpen
    Application examplesOpen

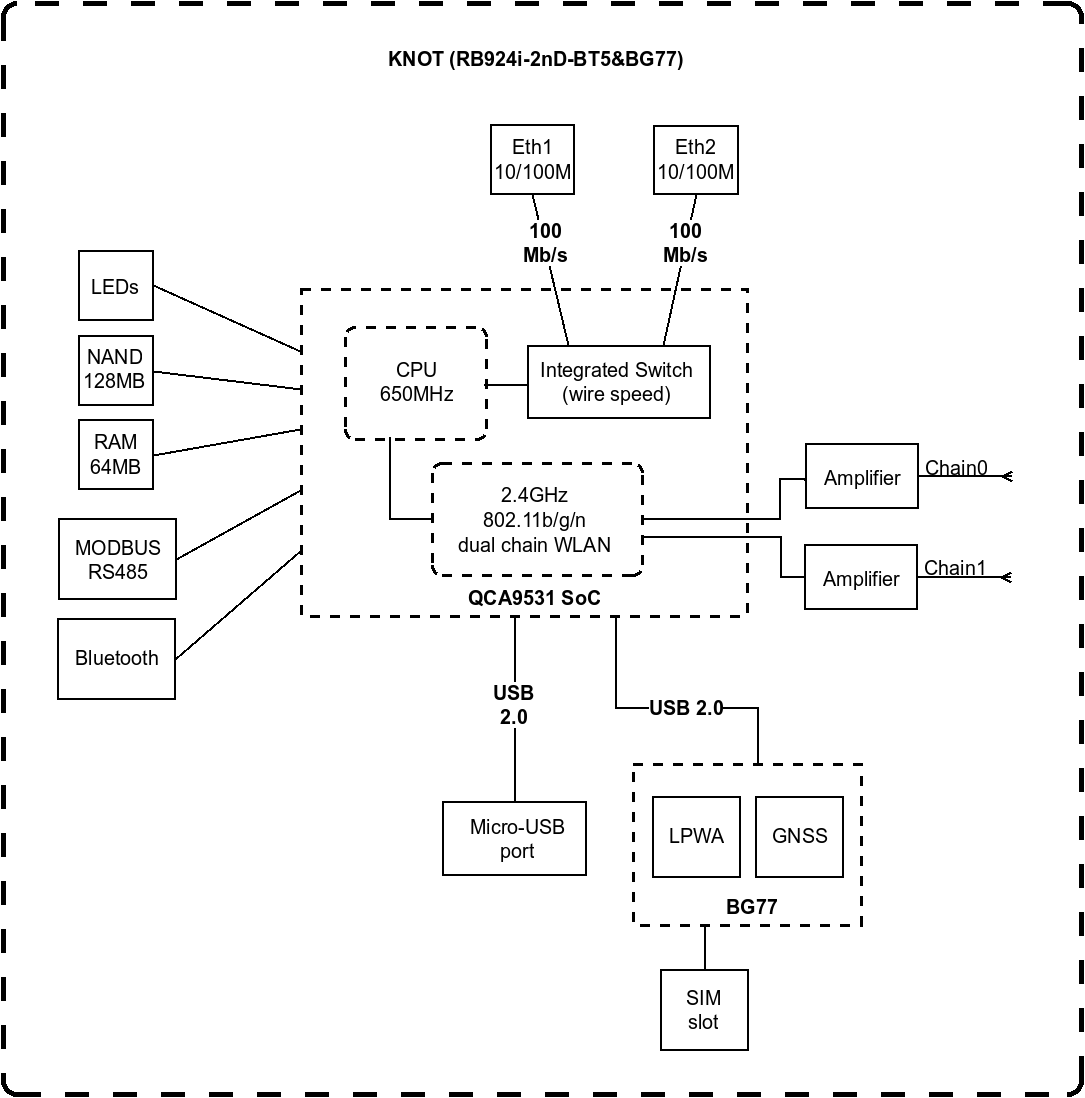

    Block DiagramOpen
    Mounting dimensionsOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    FCC Grant of Certification (2.4GHz)Open

    High resolution images

    Ethernet test results

    RB924i-2nD-BT5&BG77r2QCA9531 100M two port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)16.3197.947.0192.5297.6152.4
    Bridging25 bridge filter rules16.3197.947.0192.580.441.2
    Routingnone (fast path)16.3197.947.0192.5233.1119.3
    Routing25 simple queues16.3197.947.0192.5131.467.3
    Routing25 ip filter rules16.3197.947.0192.549.125.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
