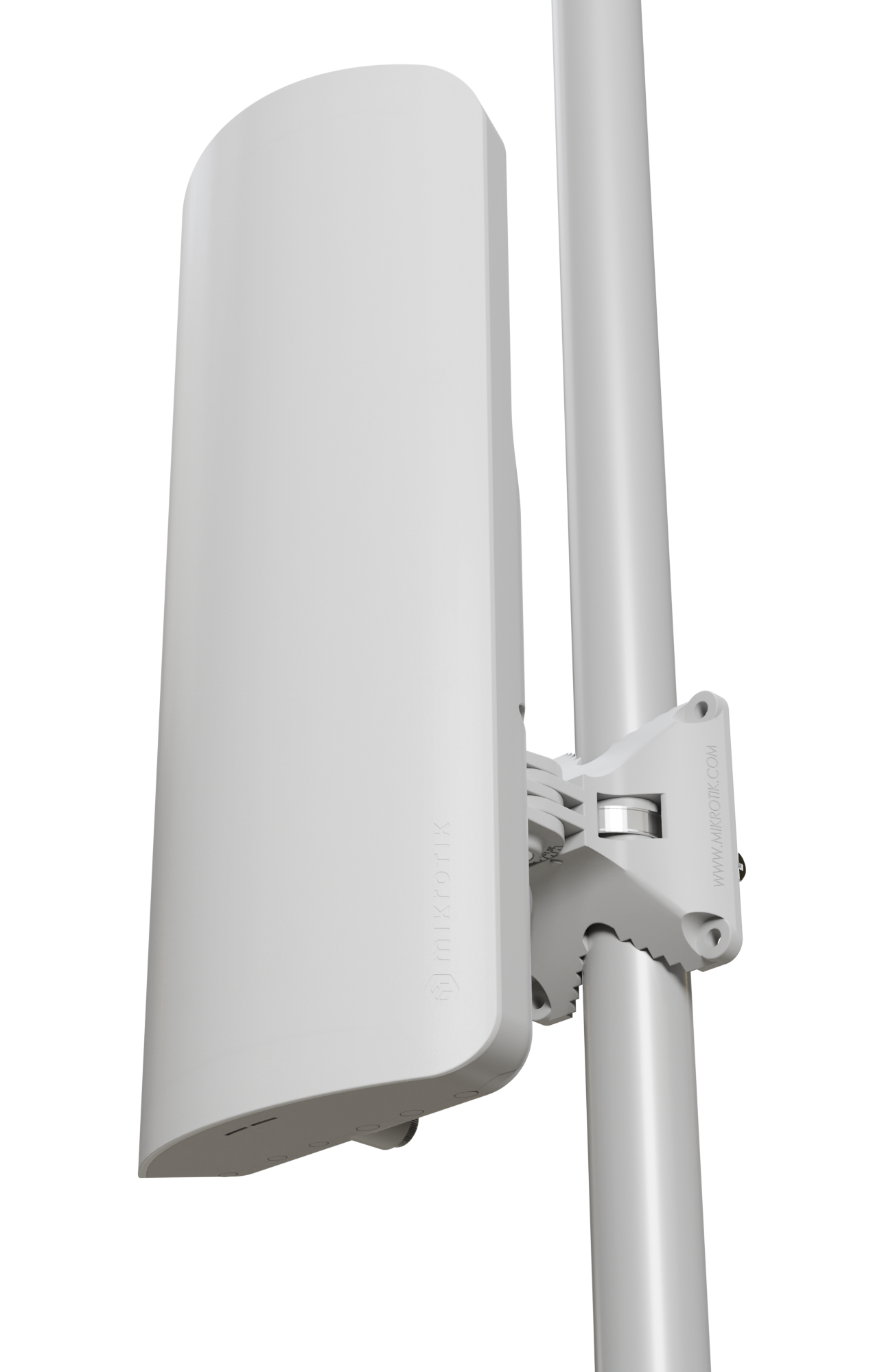

    mANTBox ax 15s A drop-in Wi-Fi 6 upgrade for the popular mANTBox dual-band sector antenna base stations. One powerful package for all your outdoor network needs, perfect for camps, stadiums and parks.

    Managing outdoor wireless network has never been easier: mANTBox ax 15s can provide unparalleled wireless point-to-multipoint connectivity for a vast variety of devices over a distance of 20 kilometers!*

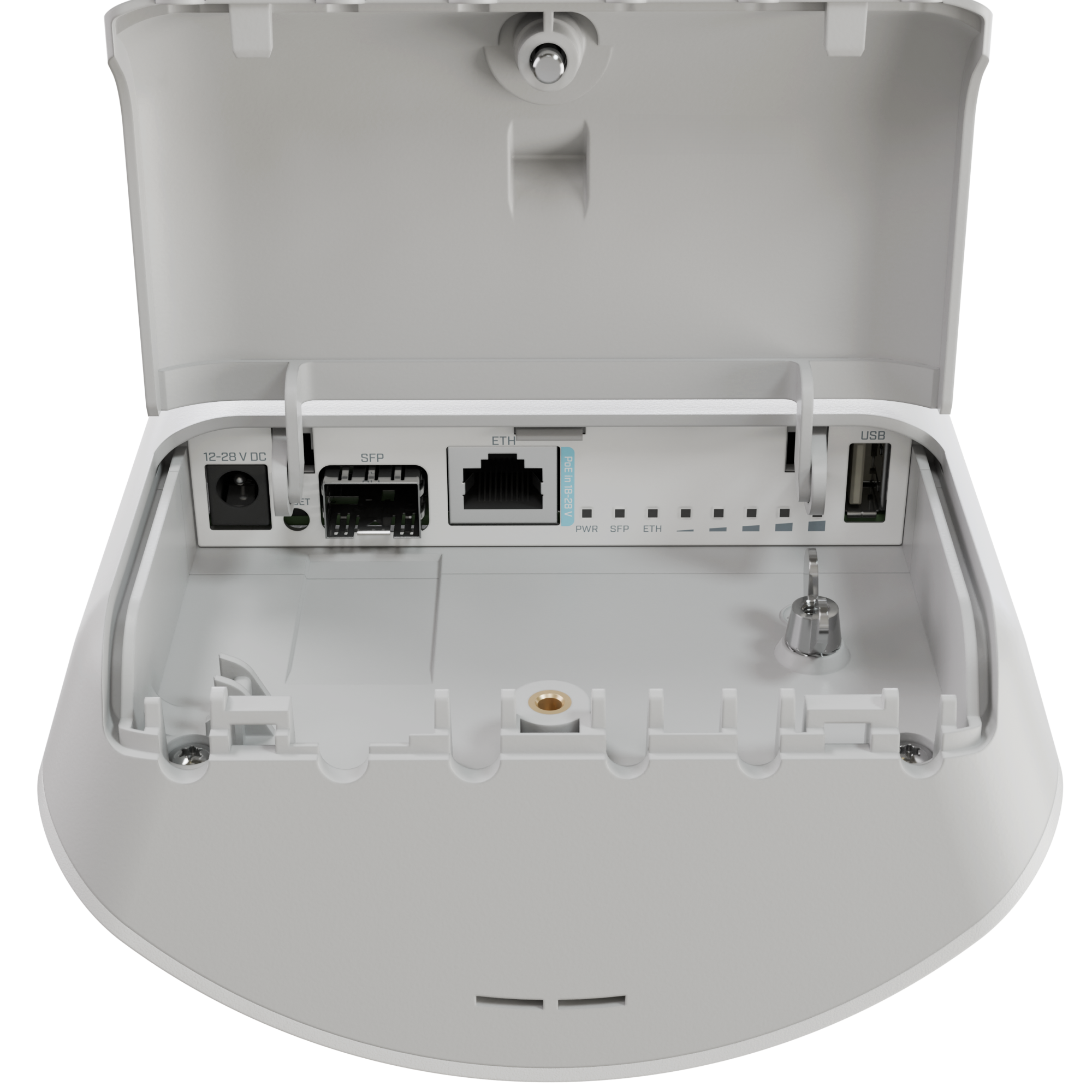

    A potent combination of modern dual-core ARM CPUs, our latest 802.11ax Wi-Fi 6 dual-band radios and powerful built-in sector antennas will take your signal stability, speed, and responsiveness to the next level! There’s a Gigabit Ethernet port with PoE-in and an SFP port with 2.5 Gigabit support for extra fast fiber uplinks.

    Upgrading your setup to Wi-Fi 6 offers multiple benefits:

    Speed: we’ve seen up to 40% higher speed in the 5 GHz spectrum and up to 90% higher speed in the 2.4 GHz spectrum.

    Security: WPA3 encryption and management frame protection prevent all sorts of attacks, like bruteforcing and WPA2 handshakecapture deauthentication attacks

    Reliability: seamless fast transition (roaming) enables smooth, non-stop signal when you have to switch between access points. Also, Wi-Fi 6 ensures a fair traffic distribution if the connection is shared by a large number of users.

    Energy efficiency: features like Target Wake Time reduce power consumption in the long run. Better for your wallet and the planet!

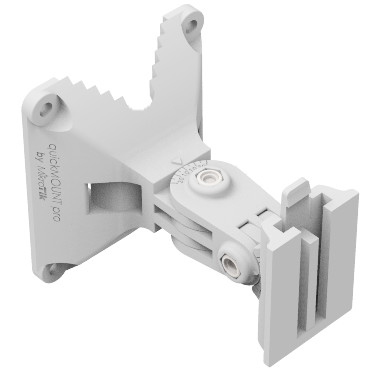

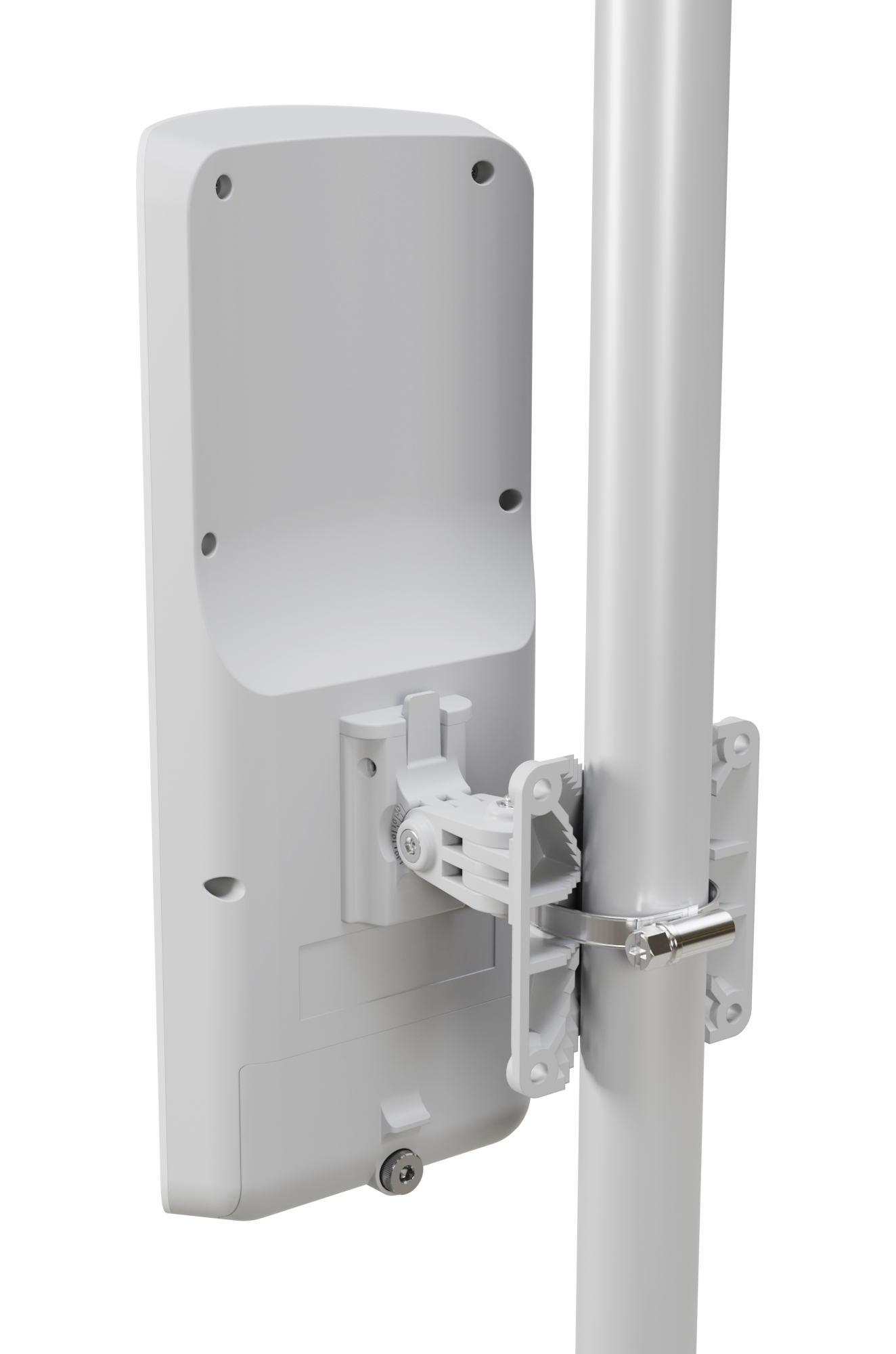

    mANTBox package includes everything you need: a Gigabit PoE injector, a power supply, a hose clamp and a fastening set, and the MikroTik quickMOUNT pro. This advanced wall mount adapter allows turning antenna within 140° both horizontally and vertically. With the quickMOUNT pro it is possible to perfectly set antenna alignment using an integrated graduated scale.

    *It's important to note that while longer links are feasible, their reliability may vary.

     Send purchase questions

    Specifications

    Details
    Product code L22UGS-5HaxD2HaxD-15S
    Architecture ARM
    CPU IPQ-5010
    CPU core count 2
    CPU nominal frequency 800 MHz
    RouterOS license 4
    Operating System RouterOS v7
    Size of RAM 256 MB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $179.00

    Powering

    Details
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 12-28 V
    Max power consumption 21 W
    Max power consumption without attachments 11 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 18-28 V

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate 574 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n/ax
    Antenna gain dBi for 2.4 GHz 12
    Wireless 2.4 GHz chip model IPQ-5010
    Wireless 2.4 GHz generation Wi-Fi 6
    Wireless 5 GHz Max data rate 2400 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac/ax
    Antenna gain dBi for 5 GHz 15
    Wireless 5 GHz chip model QCN-6102
    Wireless 5 GHz generation Wi-Fi 6

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Fiber

    Details
    SFP ports 1 (2.5G supported)

    Peripherals

    Details
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1.5

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP 55

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s27-100
    11MBit/s27-94
    6MBit/s29-96
    54MBit/s27-80
    MCS029-96
    MCS726-75
    MCS924-70
    MCS1122-67
    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s28-96
    54MBit/s26-80
    MCS028-96
    MCS725-75
    MCS923-70
    MCS1120-67

    Included parts

    BrochureOpen
    RouterOS current release
    FCC Grant of Certification (2.4GHz)Open
    FCC Grant of Certification (5GHz)Open
    Safety and regulatory informationOpen
    Block DiagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #
    #

    Ethernet test results

    L22UGS-5HaxD2HaxD-15SIPQ-5010 two port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)274.63334.73481425.6591.2302.6
    Bridging25 bridge filter rules203.82474.4210.5862.3213.5116.2
    Routingnone (fast path)2803399.9470.81928.3425.6217.9
    Routing25 simple queues200.22431201.7826211.3108.2
    Routing25 ip filter rules140.61707.3145.5595.9145.474.5
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
