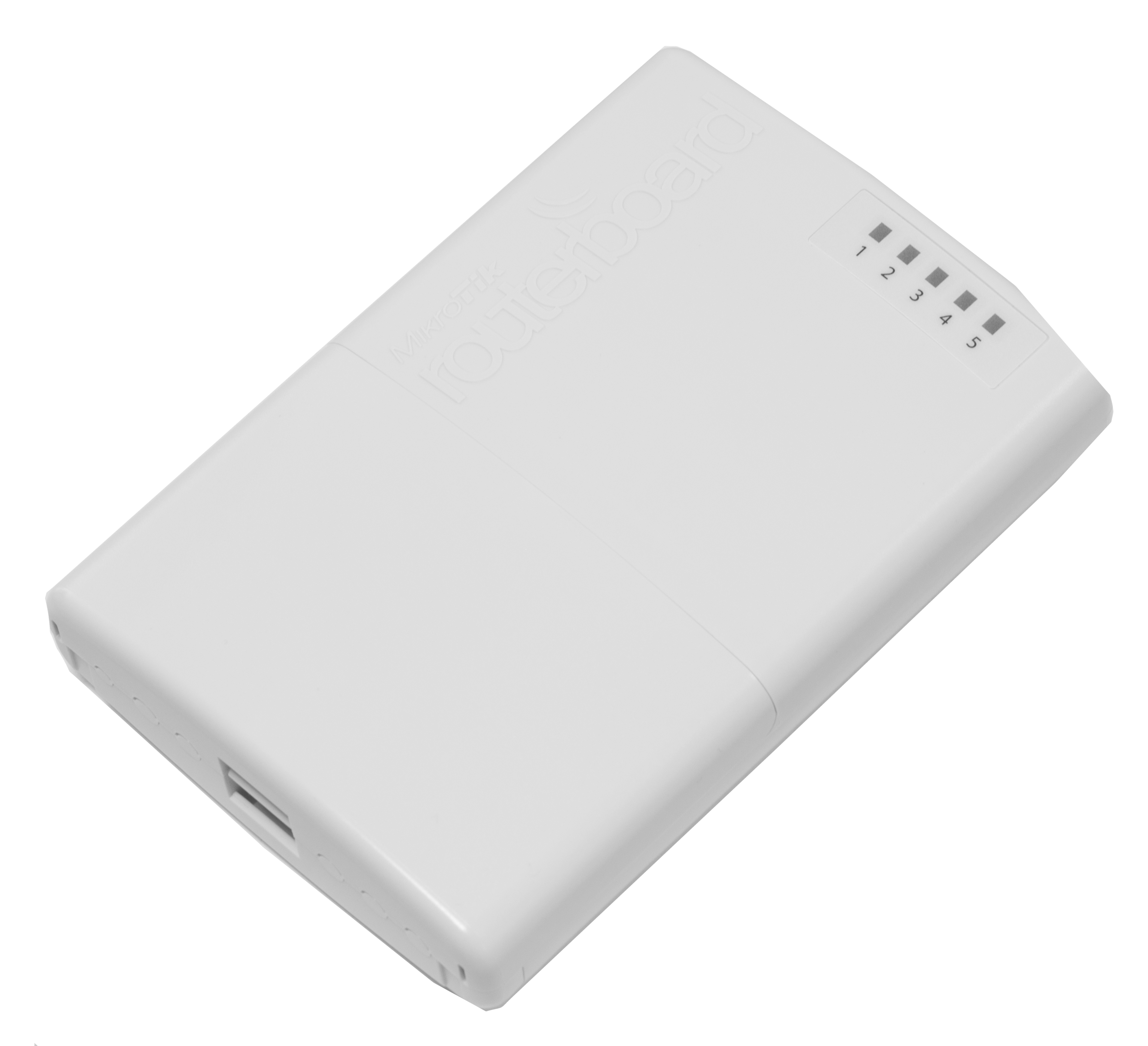

    PowerBox 650MHz CPU, 64MB RAM, 5xEthernet with PoE output for four ports, RouterOS L4, outdoor case, PSU

    The PowerBox is an outdoor five Ethernet port router with PoE output on four ports. You can use this device to supply power to four PoE capable devices such as our SXT or others.

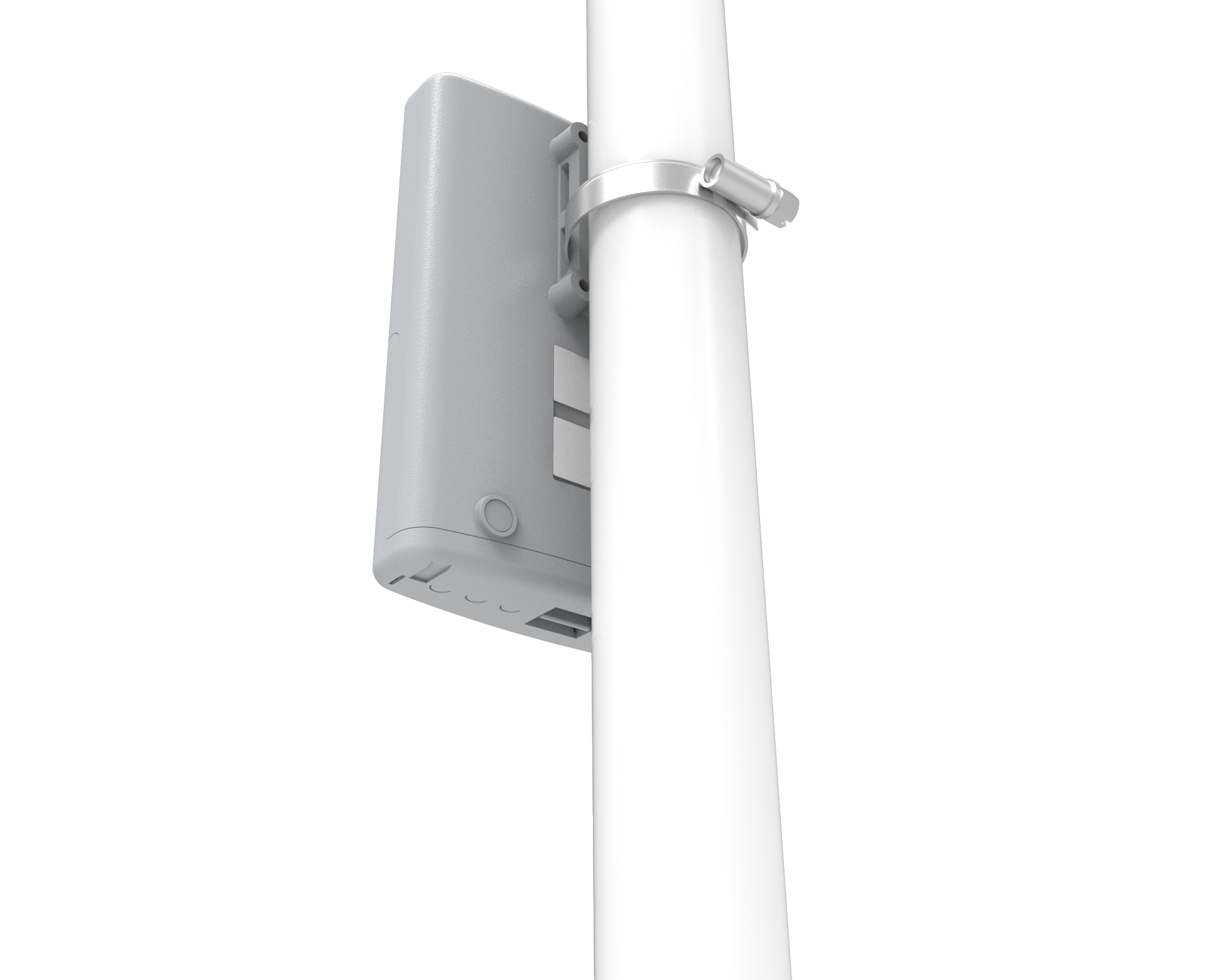

    Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations.

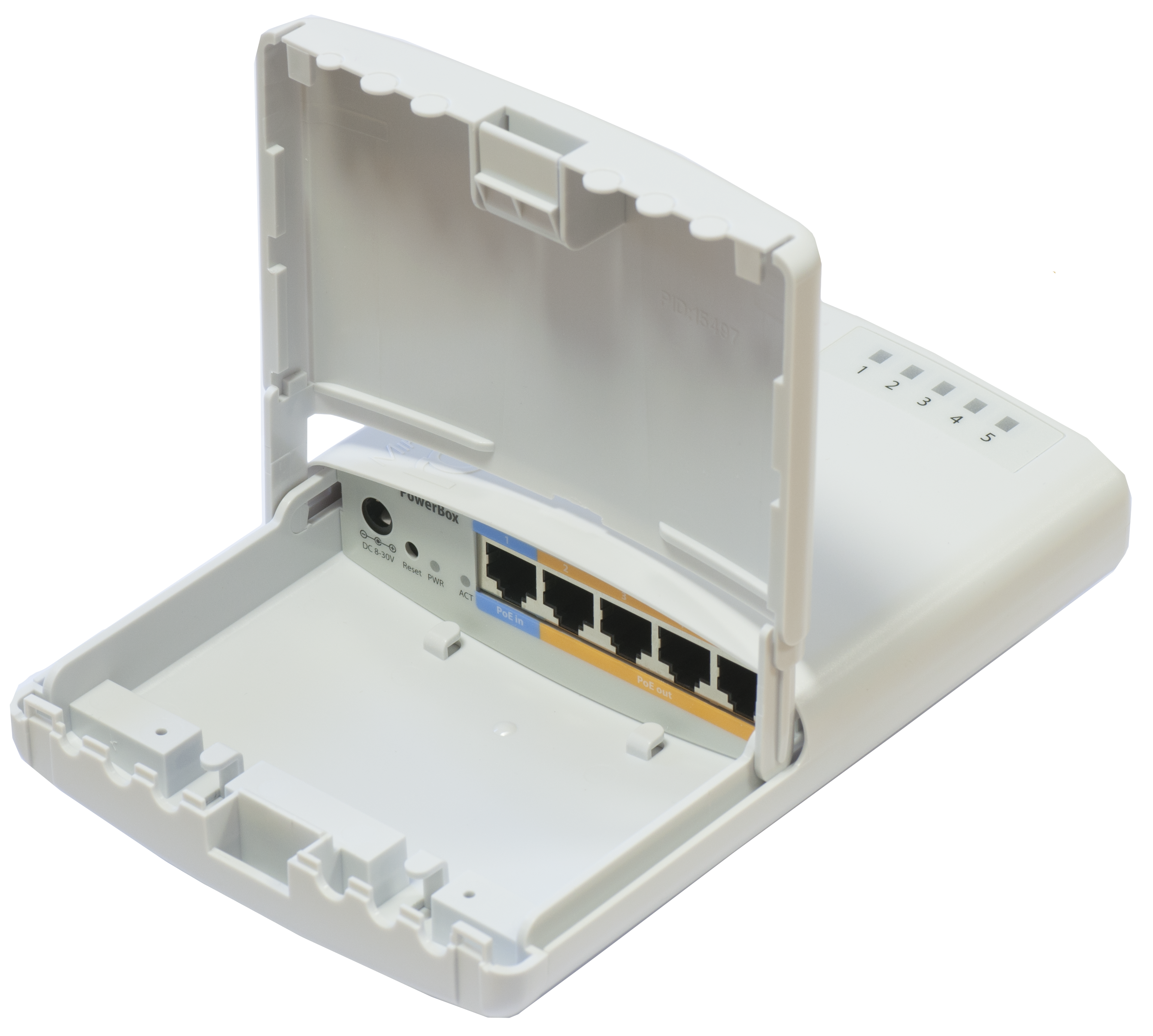

    The unit has five shielded Ethernet ports, four of which can power other PoE capable devices with the same voltage as applied to the unit (max current out is 1A per port, max total out is 2A). Less power adapters and cables to worry about!

     Send purchase questions

    Specifications

    Details
    Product code RB750P-PBr2
    Architecture MIPSBE
    CPU QCA9533
    CPU core count 1
    CPU nominal frequency 650 MHz
    Switch chip model QCA9533
    Dimensions 125x178x48mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $69.00

    Powering

    Details
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 8-30 V
    Max power consumption 50 W
    Max power consumption without attachments 2 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 8-30 V

    PoE-out

    Details
    PoE-out ports Ether2-Ether5
    PoE out Passive PoE
    Max out per port output (input 18-30 V) 1 A
    Max total out (A) 2 A

    Ethernet

    Details
    10/100 Ethernet ports 5

    Other

    Details
    Current Monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP 20

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    RouterBoot firmware Download
    Product dimensionsOpen
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #
    #

    Ethernet test results

    RB750P-PBr2QCA9531 (650Mhz) 100M all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)40.6493.0117.4480.9217.0111.1
    Bridging25 bridge filter rules40.6493.070.1287.170.936.3
    Routingnone (fast path)40.6493.0117.4480.9200.8102.8
    Routing25 simple queues40.6493.079.6326.090.846.5
    Routing25 ip filter rules40.6493.042.2172.843.222.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
