    wAP ac LTE kit (2024) A refresh of the classic dual-band wAP LTE kit with Gigabit Ethernet – this time with a brand new LTE modem that brings the PRICE DOWN and the performance UP!

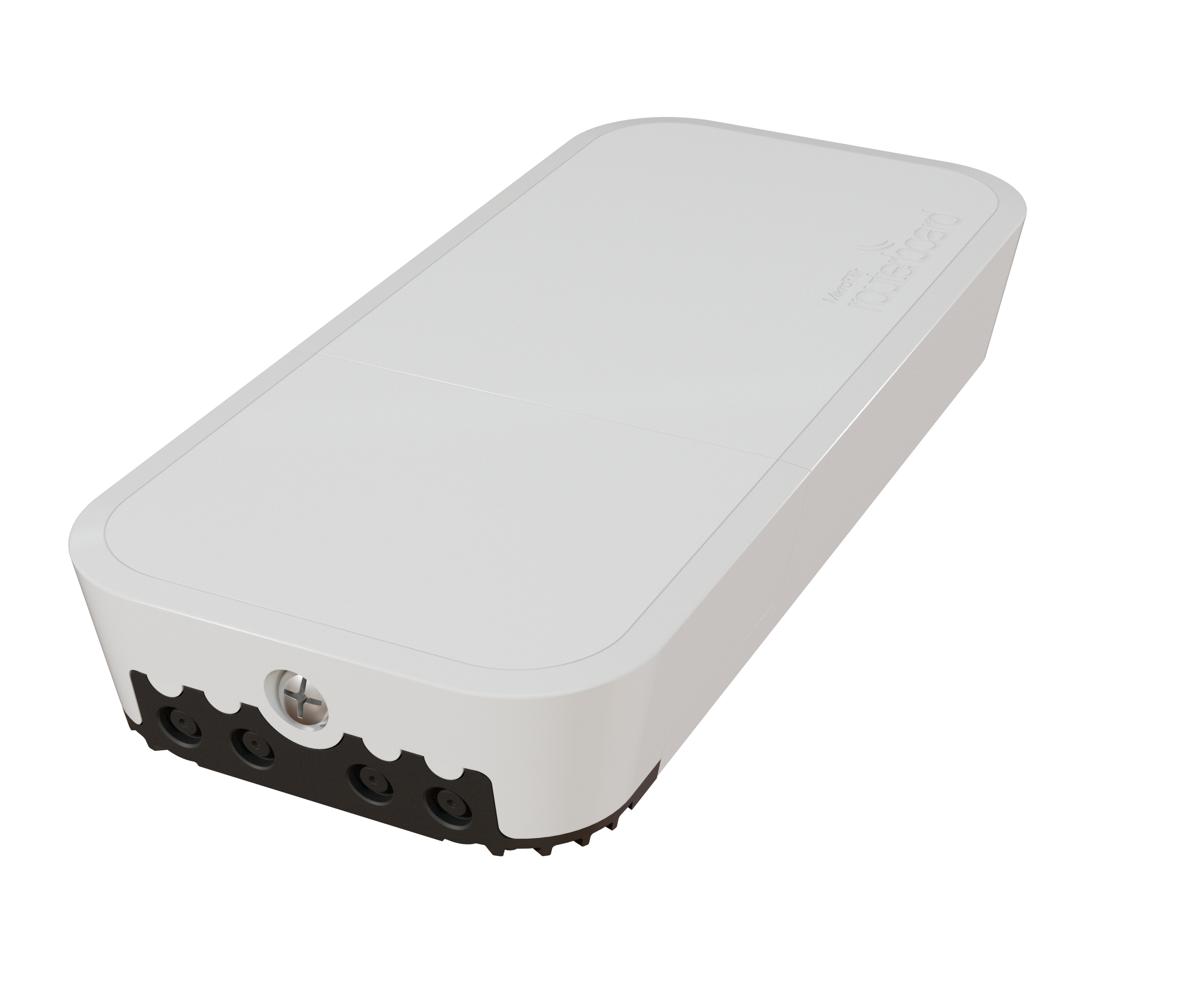

    wAP ac LTE kit is a tiny dual-band weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on a tight budget. Two Gigabit ports allow using the speedy built-in LTE modem as a mobile internet backup connection, in case you already have a wired ISP.

    The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band, and a serious price drop!

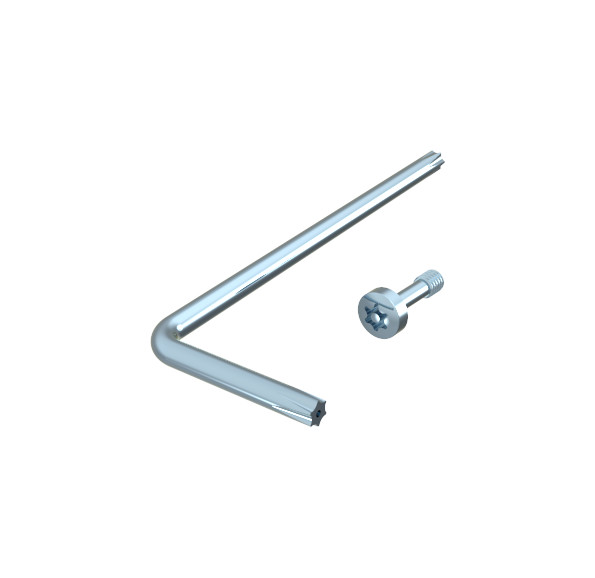

    wAP ac LTE kit is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti- vandal screw, which can only be opened by the owner.

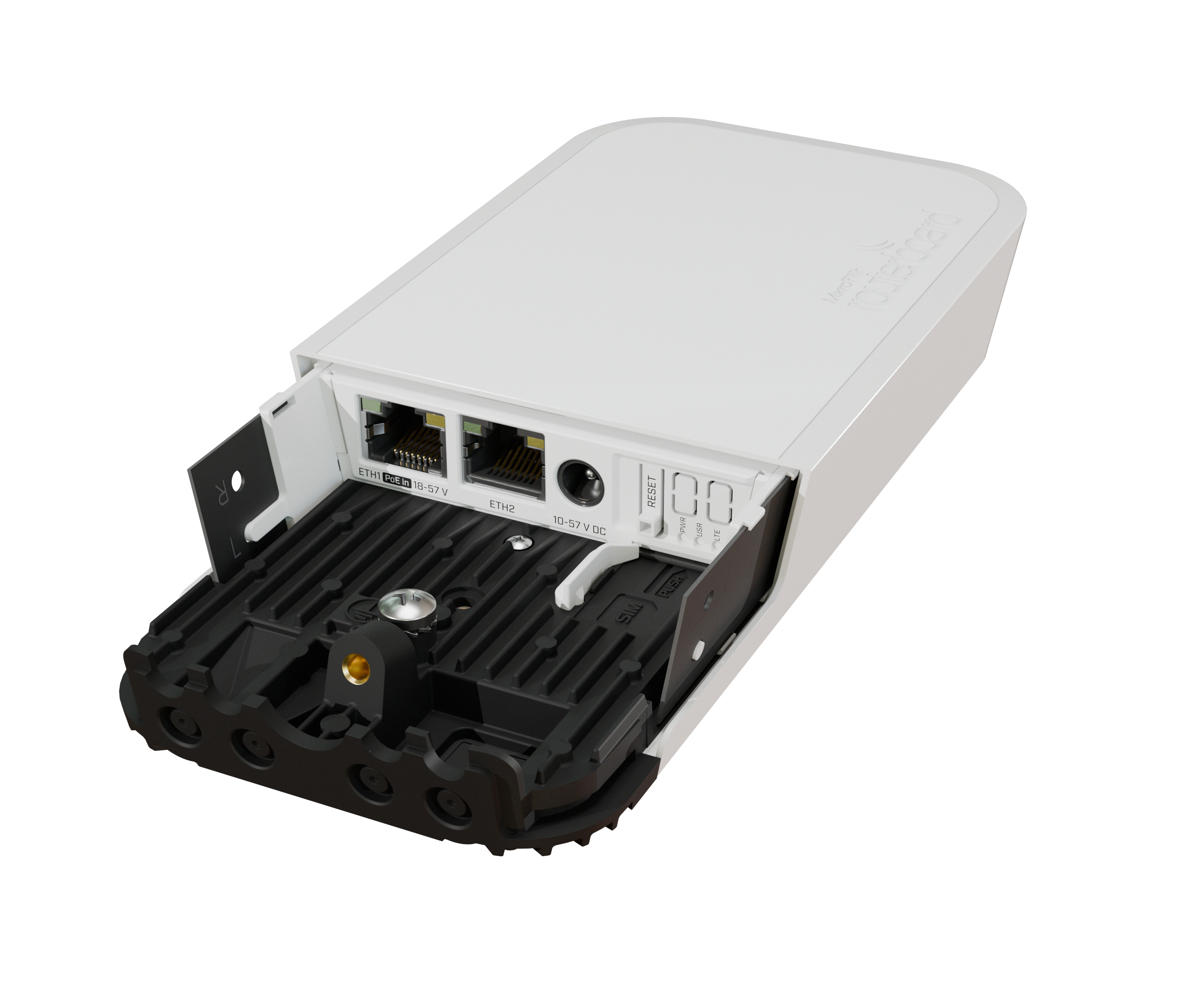

    There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.

     Send purchase questions

    Specifications

    Details
    Product code wAPGR-5HacD2HnD&EC200A-EU
    Architecture ARM 32bit
    CPU IPQ-4018
    CPU core count 4
    CPU nominal frequency auto MHz
    Switch chip model IPQ-4018
    RouterOS license 4
    Operating System RouterOS v7
    Size of RAM 128 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -30°C to 60°C
    IPsec hardware acceleration Yes
    Suggested price $169.00

    Powering

    Details
    Number of DC inputs 2 (PoE-IN, DC jack)
    DC jack input Voltage 10-57 V
    Max power consumption 12 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 18-57 V

    Mobile

    Details
    2G Category Class12
    2G bands 8 (900MHz) / 3 (1800MHz)
    3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
    3G bands 5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
    LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
    LTE FDD bands 20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz)
    LTE TDD bands 40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz)
    TAC 86314105

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 2.5
    Wireless 2.4 GHz chip model IPQ-4018
    Wireless 2.4 GHz generation Wi-Fi 4
    Wireless 5 GHz Max data rate 867 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac
    Antenna gain dBi for 5 GHz 2.5
    Wireless 5 GHz chip model IPQ-4018
    Wireless 5 GHz generation Wi-Fi 5

    Ethernet

    Details
    10/100/1000 Ethernet ports 2

    Peripherals

    Details
    Number of SIM slots 1 Modem (Micro SIM)
    MiniPCI-e slots 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Details
    Certification CE, E-MARK, EAC, ROHS
    IP 54

    Wireless specifications

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s24-95
    54MBit/s20-78
    MCS024-95
    MCS719-73
    MCS917-68

    Included parts

    BrochureOpen
    Safety and regulatory informationOpen

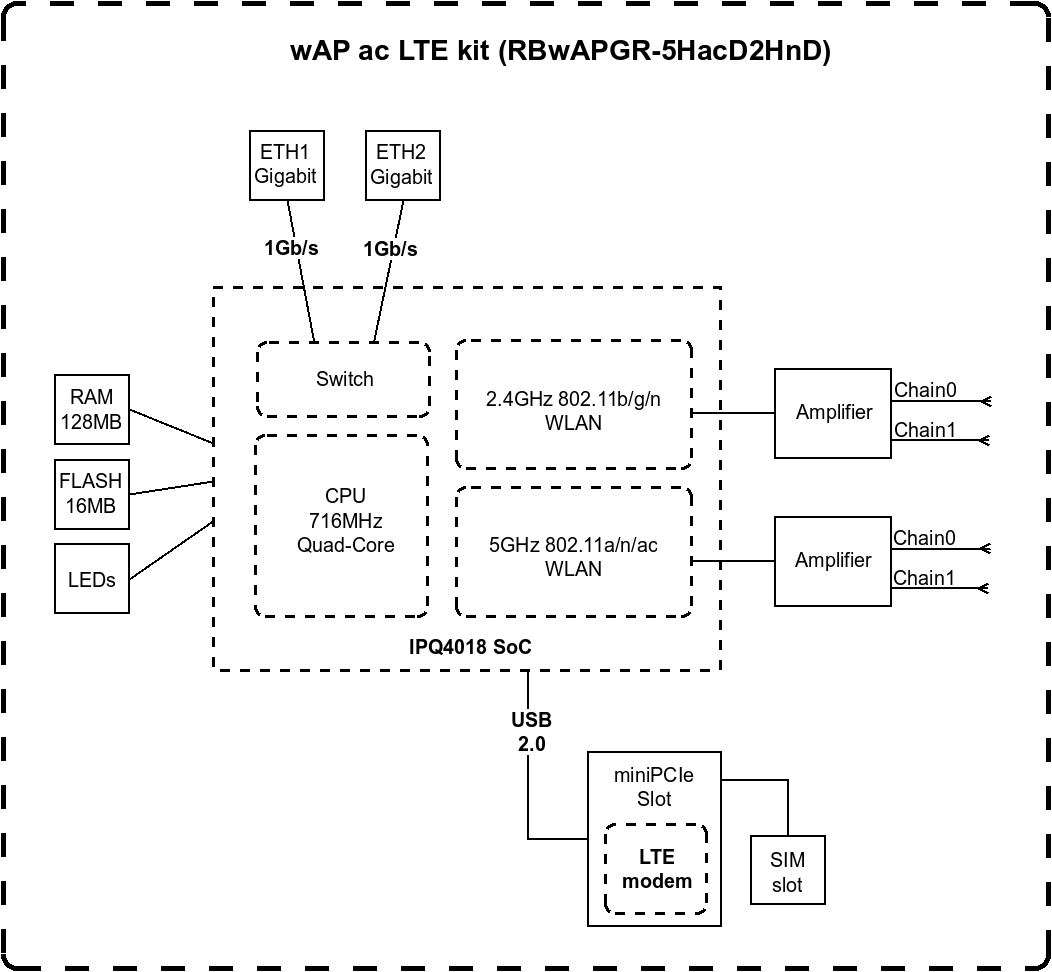

    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Ethernet test results

    wAPGR-5HacD2HnD&EC200A-EUr3IPQ-4018 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)162.51973.4469.91924.71484.8760.2
    Bridging25 bridge filter rules162.11968.5352.91445.5359.2183.9
    Routingnone (fast path)162.51973.4469.91924.71488761.9
    Routing25 simple queues162.51973.4469.91924.7506.3259.2
    Routing25 ip filter rules162.21969.8240.8986.3242.9124.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    wAPGR-5HacD2HnD&EC200A-EUr3IPQ-4018 IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA137.9424.559241.761.631.5
    256 tunnelsAES-128-CBC + SHA136403.238.5157.739.820.4
    256 tunnelsAES-128-CBC + SHA25636403.238.5157.739.820.4
    256 tunnelsAES-256-CBC + SHA134.4385.337.9155.239.820.4
    256 tunnelsAES-256-CBC + SHA25634.4385.337.9155.239.820.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
