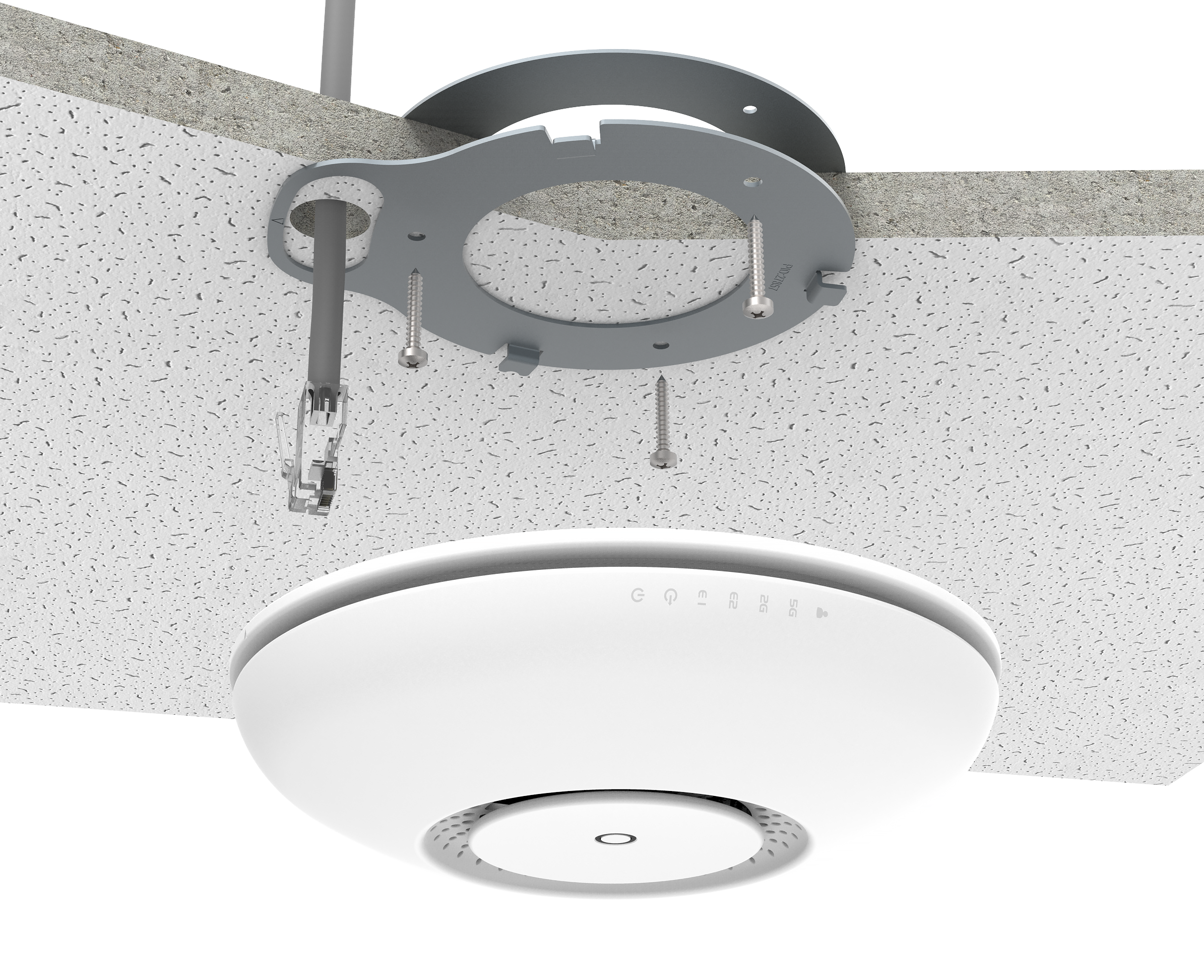

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls
and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it.
Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend
your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE
input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.
- cAP ac (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
- cAP ac-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
Send purchase questions
Specifications
| Details |
| Product code |
RBcAPGi-5acD2nD |

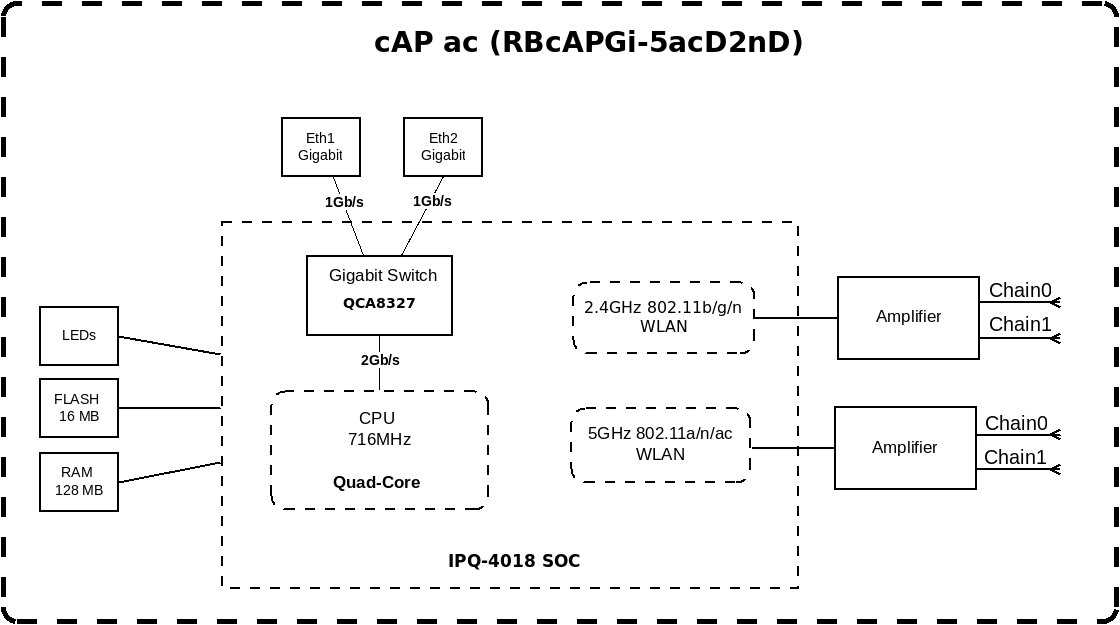

| Architecture |
ARM 32bit |
| CPU |
IPQ-4018 |
| CPU core count |
4 |
| CPU nominal frequency |
716 MHz |
| Switch chip model |
IPQ-4018 |
| Dimensions |

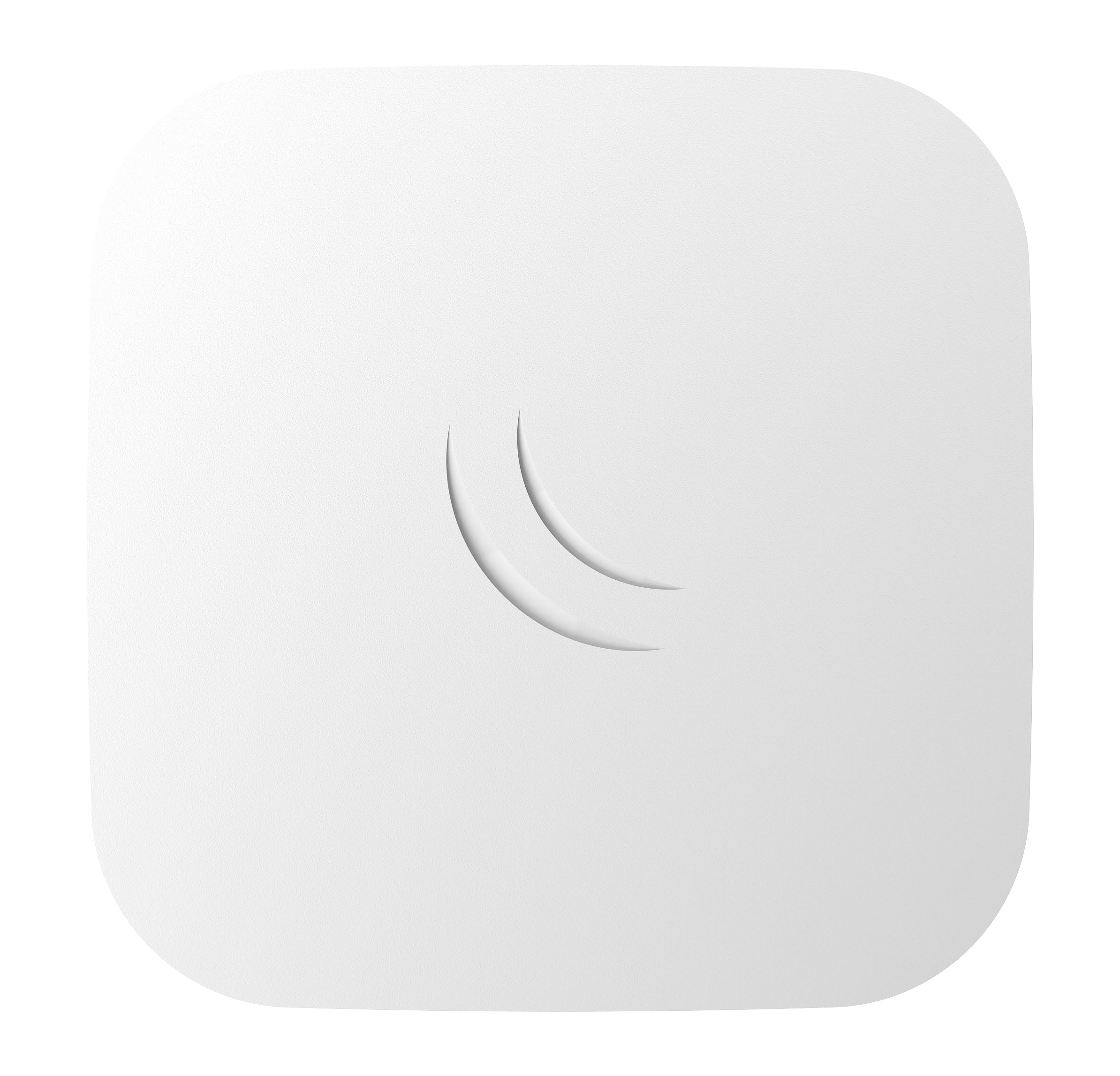

Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm |
| RouterOS license |
4 |
| Operating System |
RouterOS |
| Size of RAM |
128 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 100'000 hours at 25C |
| Tested ambient temperature |
-40°C to 50°C |
| IPsec hardware acceleration |
Yes |
| Suggested price |
$85.00 |
Wireless capabilities
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2 |
| Wireless 2.4 GHz chip model |
IPQ-4018 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless 5 GHz Max data rate |
867 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
2.5 |
| Wireless 5 GHz chip model |
IPQ-4018 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
| WiFi speed |
AC1200 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
2 |
Powering
| Details |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
24 W |
| Max power consumption without attachments |
12 W |
| Cooling type |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
17-57 V |
PoE-out
| Details |
| PoE-out ports |
Ether2 |
| PoE out |
Passive PoE up to 57V |
| Max out per port output (input 18-30 V) |
500 mA |
| Max out per port output (input 30-57 V) |
400 mA |
| Max total out (A) |
500 mA |
Certification & Approvals
| Details |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
20 |
Other
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 26 | -100 |
| 11MBit/s | 26 | -94 |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 23 | -78 |
| MCS0 | 26 | -96 |
| MCS7 | 22 | -73 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 26 | -96 |
| 54MBit/s | 21 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 20 | -75 |
| MCS9 | 18 | -70 |
Included parts
RouterOS software manualOpen
FCC Grant of Certification (2.4GHz)Open
FCC Grant of Certification (5GHz)Open
High resolution images
Ethernet test results
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
