    CRS310-1G-5S-4S+IN 10 Gigabit fibre connectivity way over a 100 meters – for small offices or ISPs. Hardware offloaded VLAN-filtering and even some L3 routing on a budget!

    This switch is an indoor variation of the prominent netFiber 9 switch – used by many small and medium ISPs for reliable 10 Gigabit fibre connections stretching over a 100 meters. With five 1G SFP ports, four 10G SFP+ ports, and an additional Gigabit Ethernet port, this is the perfect upgrade for existing CRS212 setups. You’re getting the modern ARM v7 CPU, 256 MB of RAM, and better cooling. The new Marvell switch-chips bring phenomenal performance to the table!

    The Gigabit Ethernet port has a direct connection to the switch chip – so you can enjoy full gigabit speed there. And it supports PoE-in, giving you an additional powering option in tricky spots.

    You can mount this switch in a standard 1U rack to keep everything organized. And it has all the power you would expect from a rackmount device: CRS310 supports hardware offloaded VLAN- filtering. And even some hardware offloaded Layer-3 routing.

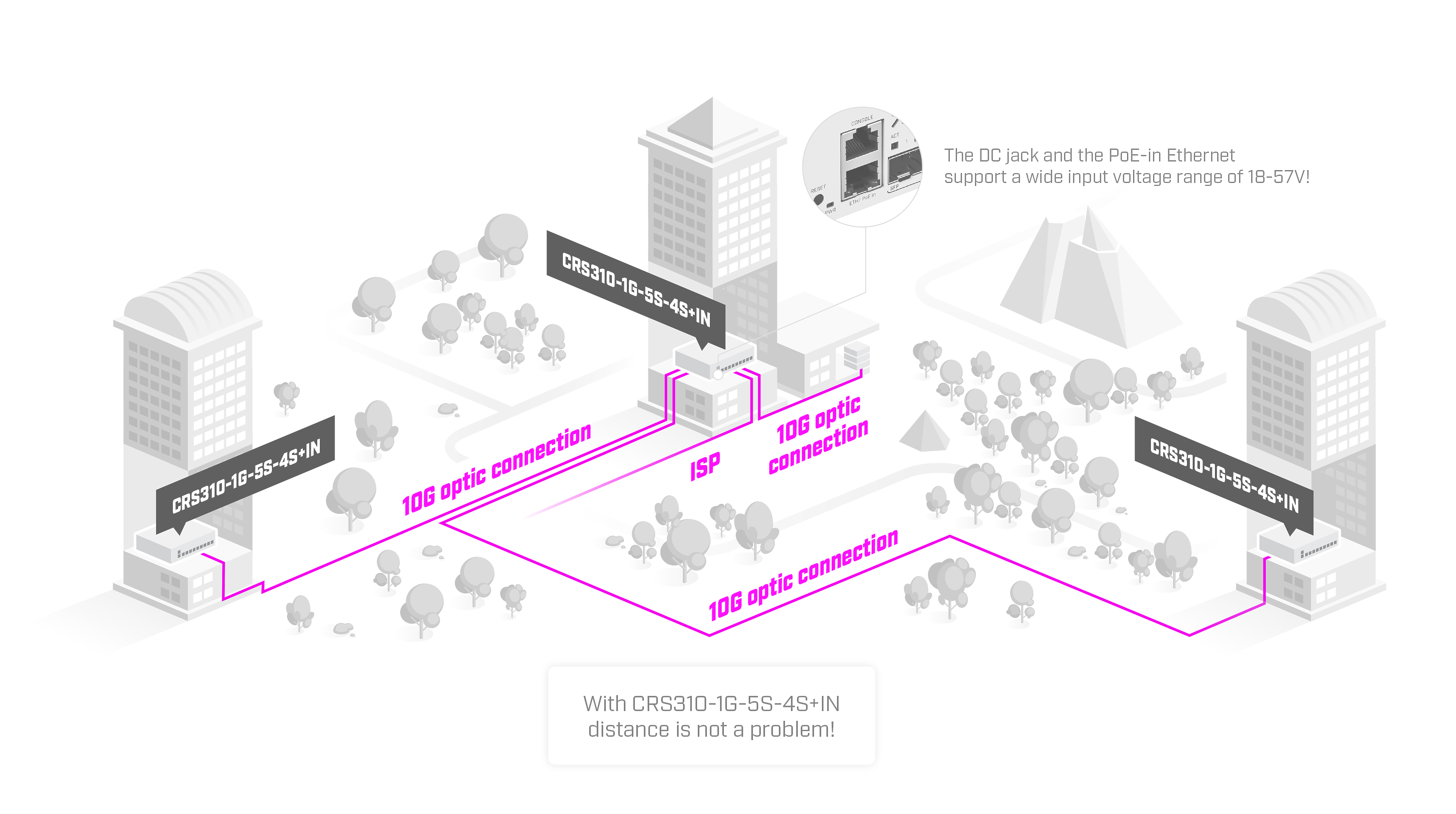

    CRS310-1G-5S-4S+IN is a fantastic tool for anyone working with indoor connections over 100 meters while keeping data loss and ping low. Optical fiber can be a great alternative to copper if you are worried about electromagnetic interference, tampering or eavesdropping.

     Send purchase questions

    Specifications

    Details
    Product code CRS310-1G-5S-4S+IN
    Architecture ARM 32bit
    CPU 98DX226S
    CPU core count 1
    CPU nominal frequency 800 MHz
    Switch chip model 98DX226S
    Dimensions 200 x 166 x 44 mm
    RouterOS license 5
    Operating System RouterOS v7 / SwitchOS
    Size of RAM 256 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $199.00

    Powering

    Details
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 18-57 V
    Max power consumption 20 W
    Max power consumption without attachments 8 W
    Cooling type 1 fan
    PoE in 802.3af/at
    PoE in input Voltage 18-57 V

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Fiber

    Details
    SFP ports 5
    SFP+ ports 4

    Peripherals

    Details
    Serial console port RJ45

    Other

    Details
    CPU temperature monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP 20

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    DimensionsOpen

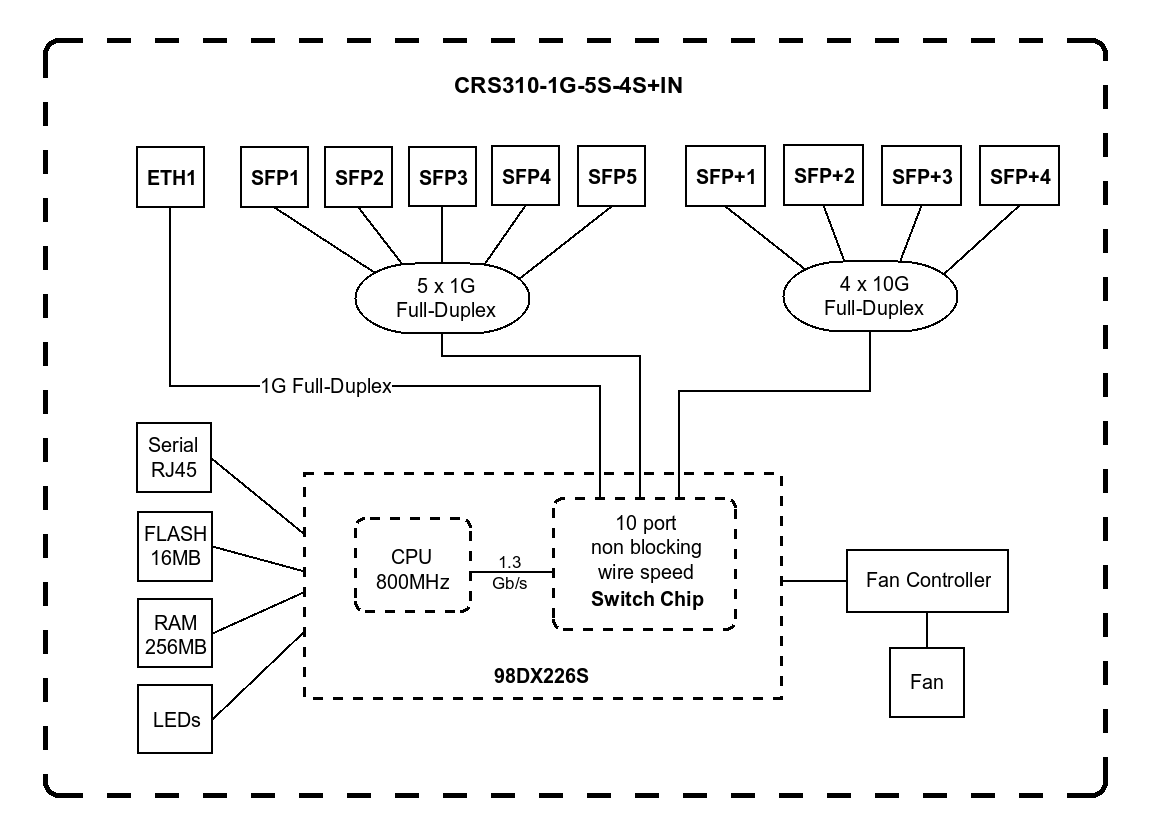

    Block DiagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    SwOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #
    #
    #
    #

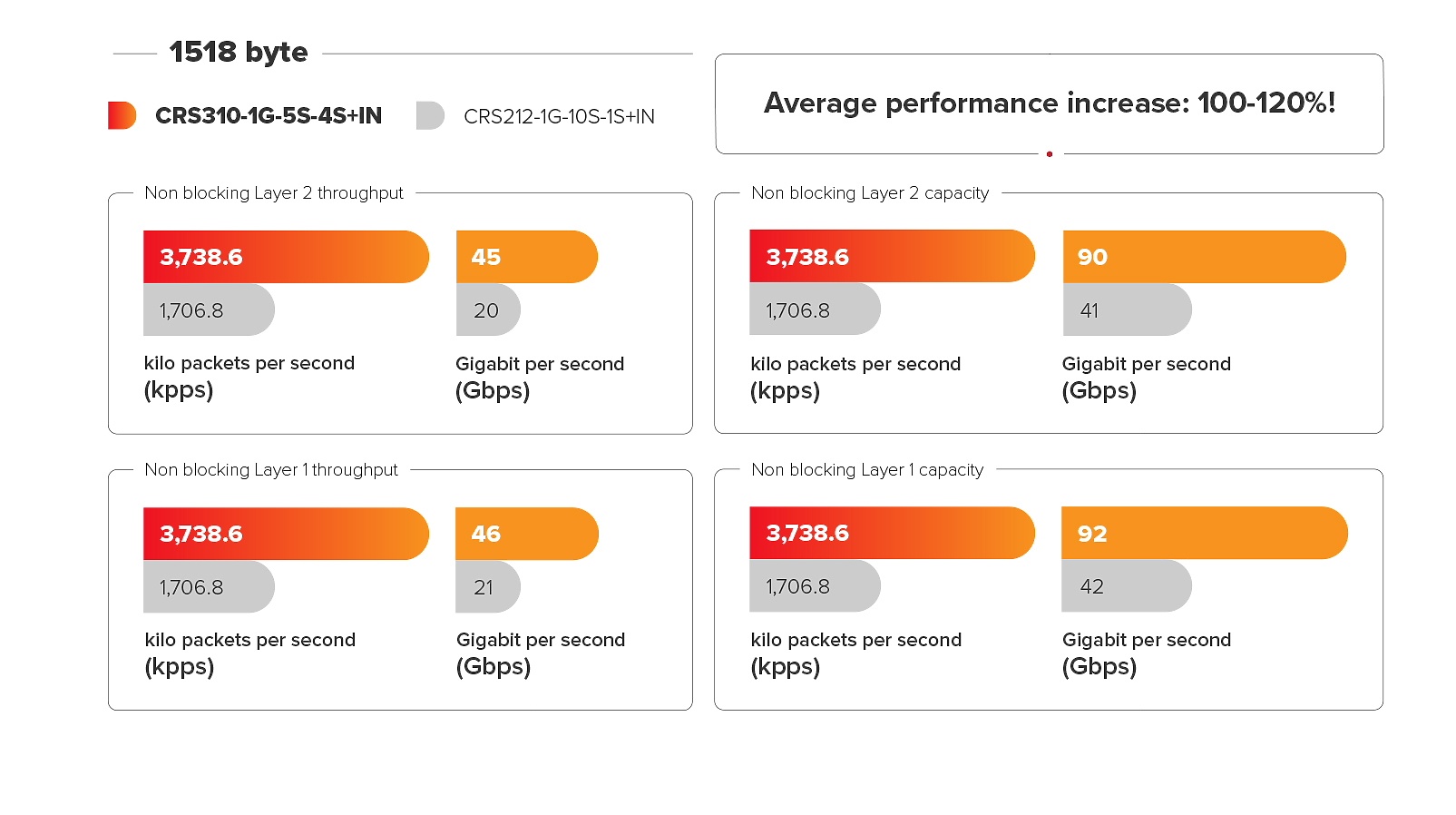

    Switching results

    CRS310-1G-5S-4S+IN
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Switching Non blocking Layer 2 throughput 3,738.6 45,401.8 10,808.3 44,270.7 68,452.4 35,047.6
    Switching Non blocking Layer 2 capacity 3,738.6 90,803.6 10,808.3 88,541.4 68,452.4 70,095.2
    Switching Non blocking Layer 1 throughput 3,738.6 46,000.0 10,808.3 46,000.0 68,452.4 46,000.0
    Switching Non blocking Layer 1 capacity 3,738.6 92,000.0 10,808.3 92,000.0 68,452.4 92,000.0

    Ethernet test results

    CRS310-1G-5S-4S+IN98DX226 all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)104,11264.2119,1487.8141,172.2
    Bridging25 bridge filter rules59,7725.059,7244.570,436.0
    Routingnone (fast path)104,11264.2129,7531.3143,573.5
    Routing25 simple queues56,7688.657,9237.265,233.4
    Routing25 ip filter rules44,1535.645,6186.848,424.8
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
