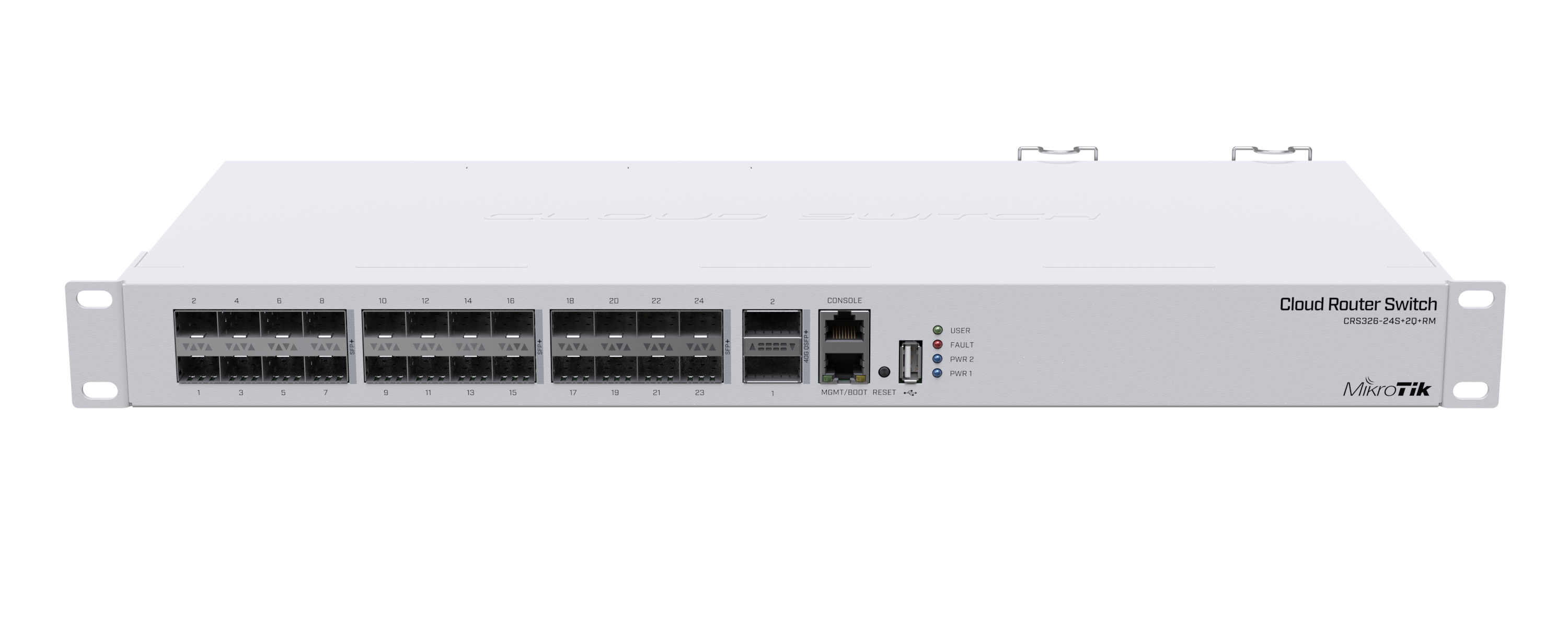

    CRS326-24S+2Q+RM Our fastest switch for the most demanding setups

    If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.

    Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

    CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!

    You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS

     Send purchase questions

    Specifications

    Details
    Product code CRS326-24S+2Q+RM
    Architecture MIPSBE
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    Switch chip model 98DX8332
    Dimensions 443 x 200 x 44 mm
    RouterOS license 5
    Operating System RouterOS v7 / SwitchOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -20°C to 60°C
    Suggested price $599.00

    Powering

    Details

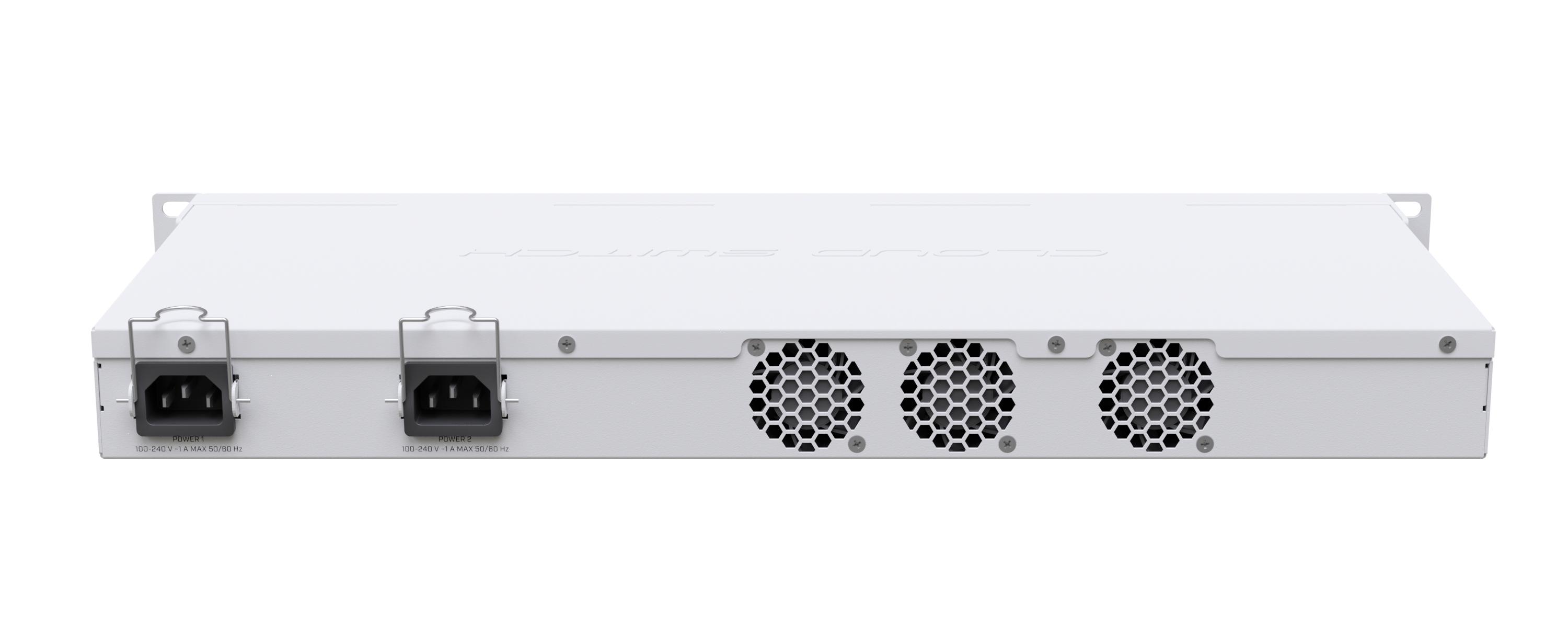

    Number of AC inputs 2
    AC input range 100-240
    Number of PSU slots 2
    Frequency (Hz) 50-60
    Max power consumption 69 W
    Max power consumption without attachments 42 W
    Cooling type 3 fans

    Ethernet

    Details
    10/100 Ethernet ports 1

    Fiber

    Details
    SFP+ ports 24
    Number of 40G QSFP+ ports 2

    Peripherals

    Details
    Serial console port RJ45
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP IP20

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload

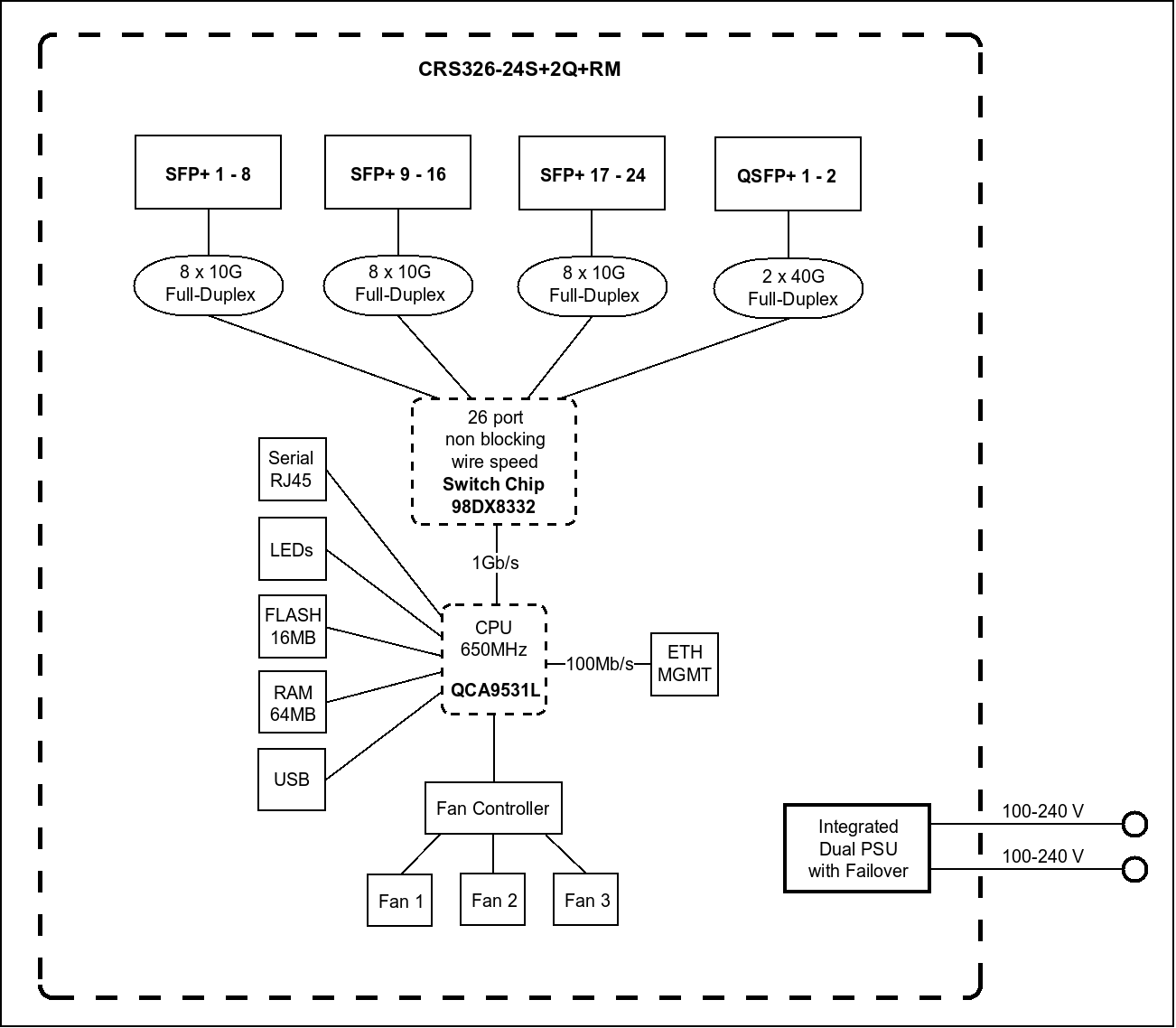

    Block diagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    SwOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Switching results

    CRS326-24S+2Q+RM
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    SwitchingNon blocking Layer 2 throughput26015.9315937.575211.5308066.2240652.5123214.1
    SwitchingNon blocking Layer 2 capacity26015.9616132.375211.5616132.3240652.5246428.2
    SwitchingNon blocking Layer 1 throughput26015.9320100.075211.5320100.0240652.5123214.1
    SwitchingNon blocking Layer 1 capacity 26015.9640200.075211.5640200.0240652.5246428.2

    Ethernet test results

    CRS326-24S+2Q+RMQCA9531 all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)37,4454.282,8339.1162,583.2
    Bridging25 bridge filter rules33,8410.547,8195.875,638.7
    Routingnone (fast path)37,2451.873,3300.2144,974.2
    Routing25 simple queues36,4442.052,4214.654,427.9
    Routing25 ip filter rules33,8410.541,4169.641,721.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
