MikroTik Routers and Wireless - Products: CRS354-48G-4S+2Q+RM

If you are looking for a single switch that will put your network setup ahead of the curve without costing a fortune, look no further. The new CRS354-48G-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in demanding and busy environments. With this product we aim to set a new price-performance bar – get more features while spending way less!

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.

Specifications

Details
Product code	CRS354-48G-4S+2Q+RM
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Switch chip model	98DX3257
Dimensions	297 x 443 x 44 mm
RouterOS license	5
Operating System	RouterOS v7 / SwitchOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 60°C
Suggested price	$599.00

Powering

Details
Number of AC inputs	2
AC input range	100-240
Number of PSU slots	2
Frequency (Hz)	50-60
Max power consumption	60 W
Max power consumption without attachments	50 W
Cooling type	3 fans

Ethernet

Details
10/100 Ethernet ports	1
10/100/1000 Ethernet ports	48

Fiber

Details
SFP+ ports	4
Number of 40G QSFP+ ports	2

Peripherals

Details
Serial console port	RJ45

Other

Details
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP20

Included parts

BrochureOpen

Quick GuideOpen

User ManualOpen

RouterOS current releaseDownload

RouterBoot firmware Download

DimensionsOpen

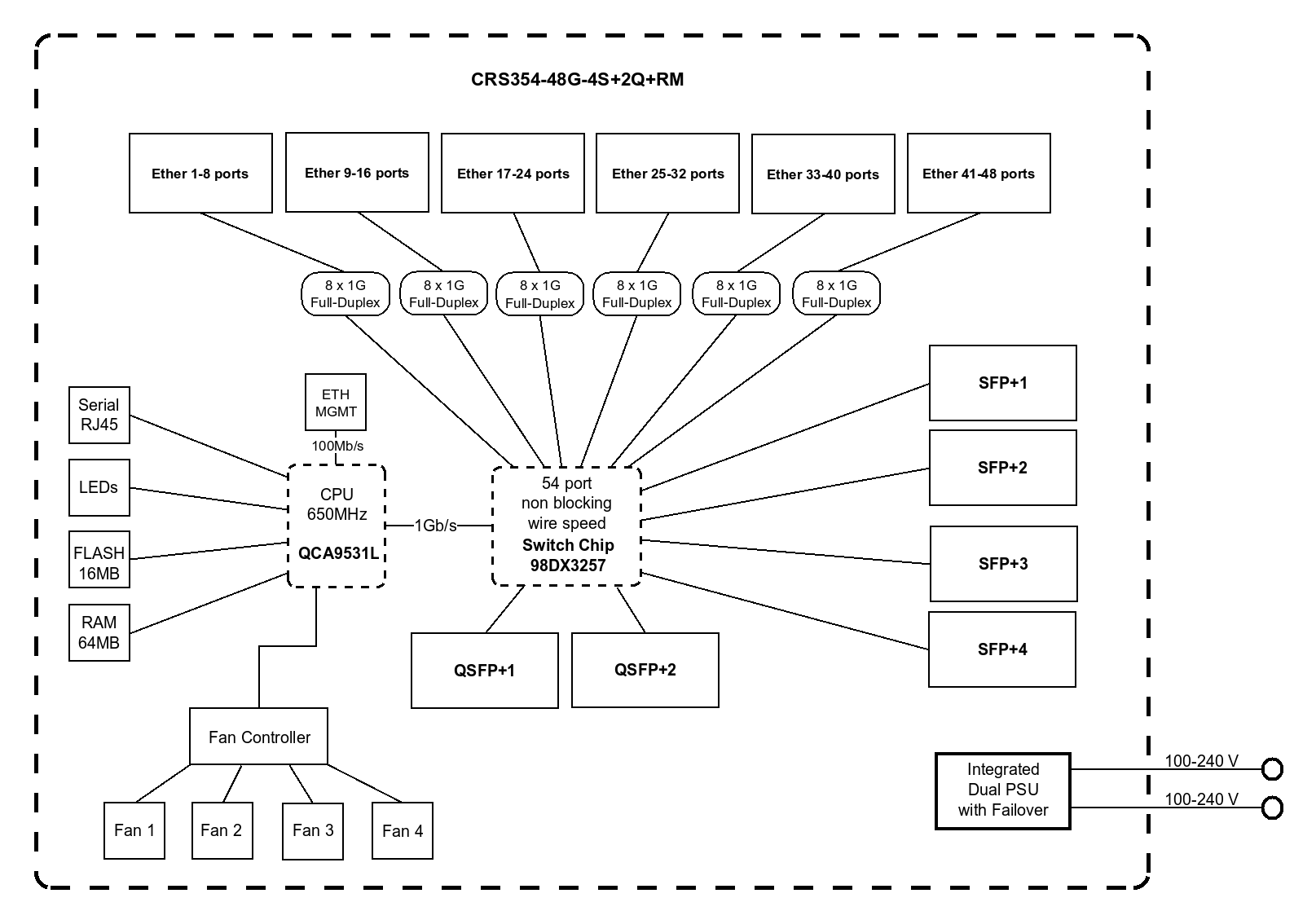

Block diagramOpen

SFP compatibility listOpen

RouterOS software manualOpen

SwOS software manualOpen

Declaration of conformityOpen (CE)

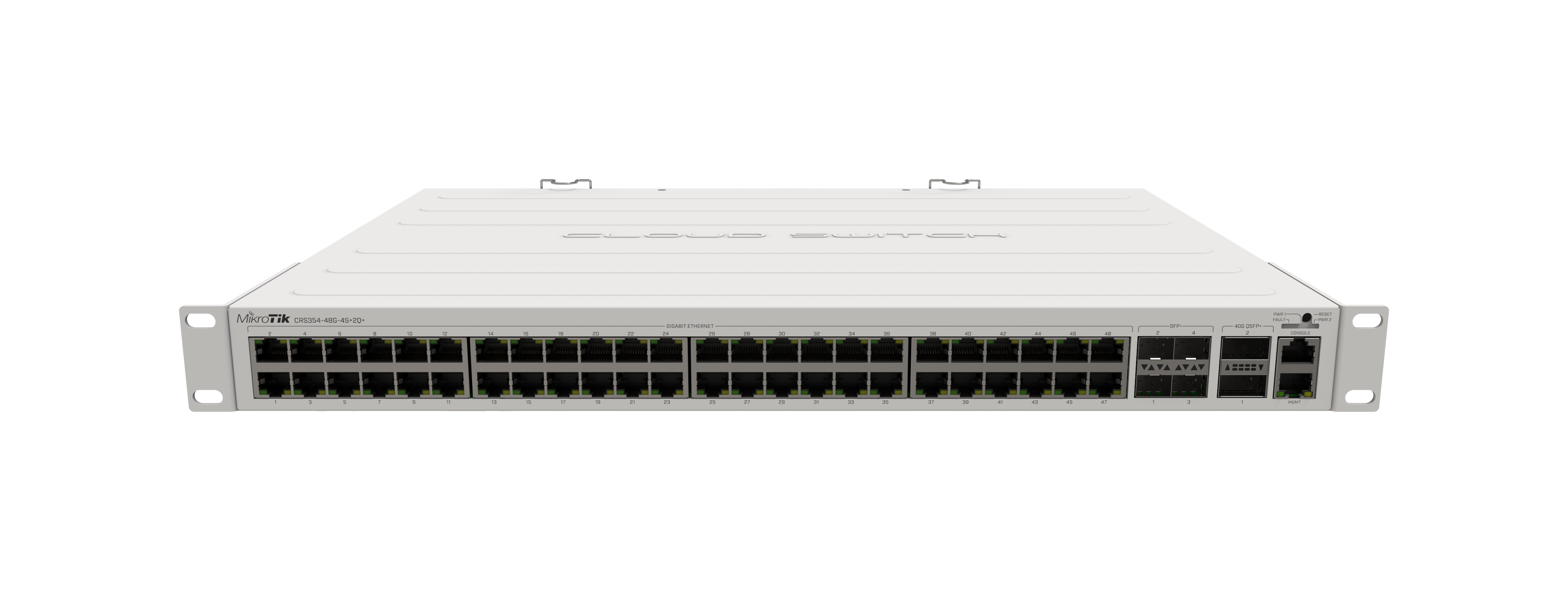

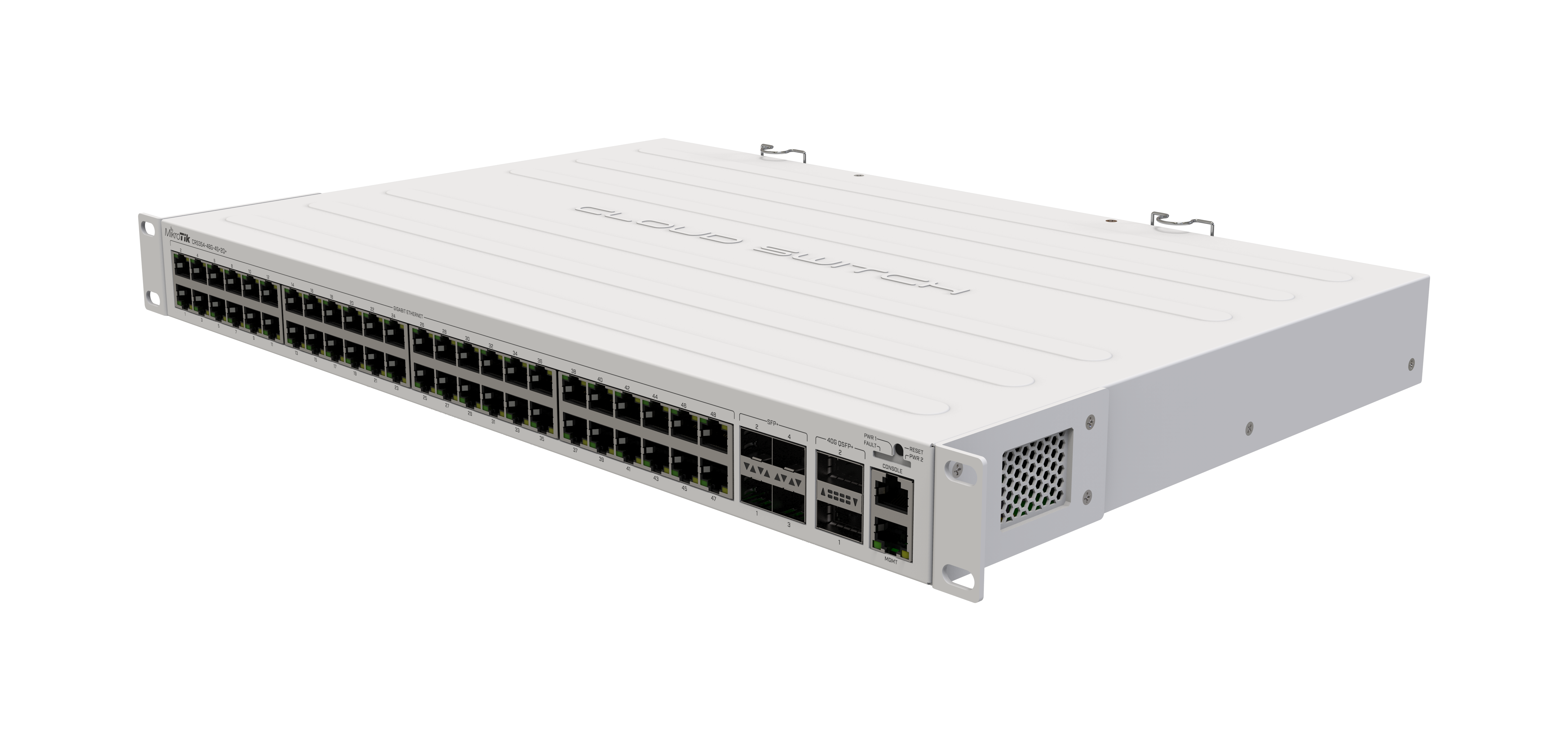

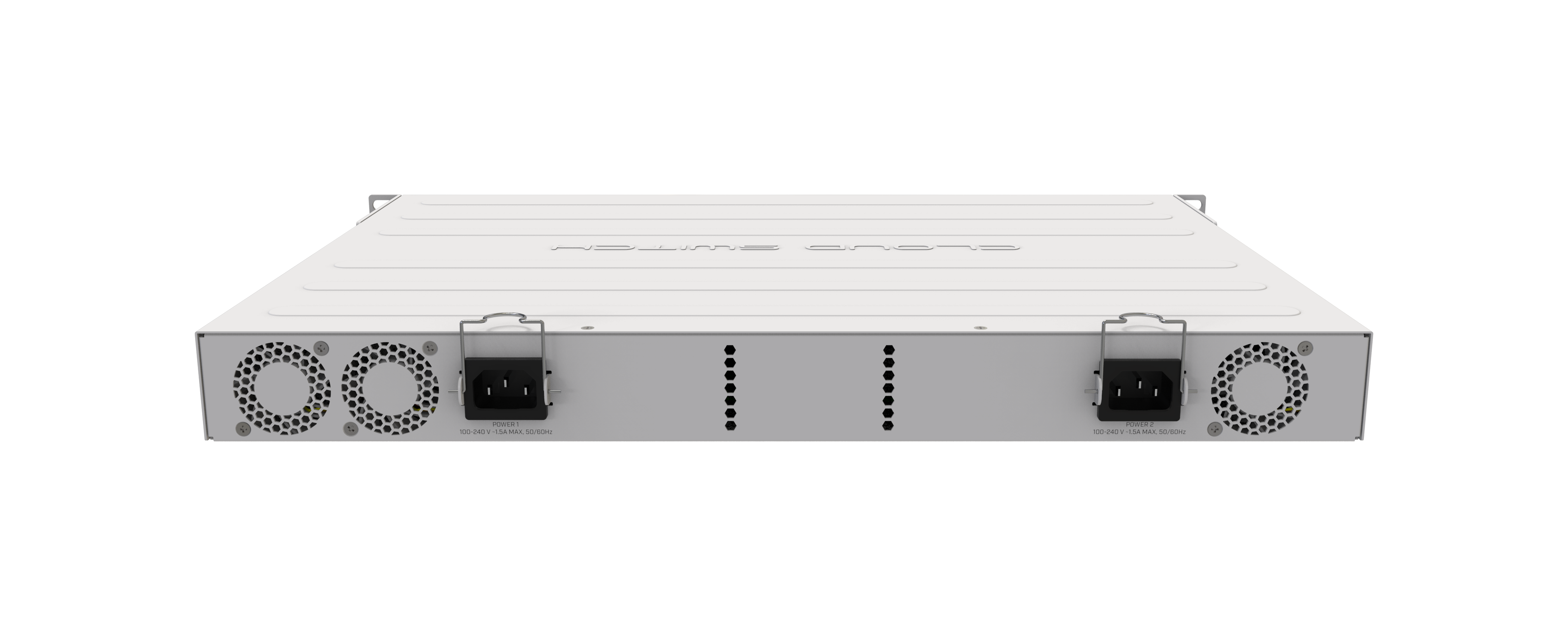

High resolution images

Switching results

CRS354-48G-4S+2Q+RM
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	13662.2	165914.0	39497.2	161780.5	250148.8	128076.2
Switching	Non blocking Layer 2 capacity	13662.2	331828.1	39497.2	323560.9	250148.8	256152.4
Switching	Non blocking Layer 1 throughput	13662.2	168100.0	39497.2	168100.0	250148.8	168100.0
Switching	Non blocking Layer 1 capacity	13662.2	336200.0	39497.2	336200.0	250148.8	336200.0
Routing	none (L3HW)	9752.9	118439.5	28195.5	115488.7	160513.7	82183.0
Routing	25 ip filter rules (Fasttrack L3HW)	5581.7	67784.7	14776.3	60523.8	80145.85	41034.6

Ethernet test results

CRS354-48G-4S+2Q+RM		QCA9531 all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	37,4	454.2	82,8	339.1	162,5	83.2
Bridging	25 bridge filter rules	33,8	410.5	47,8	195.8	75,6	38.7
Routing	none (fast path)	37,2	451.8	73,3	300.2	144,9	74.2
Routing	25 simple queues	36,4	442.0	52,4	214.6	54,4	27.9
Routing	25 ip filter rules	33,8	410.5	41,4	169.6	41,7	21.4

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
